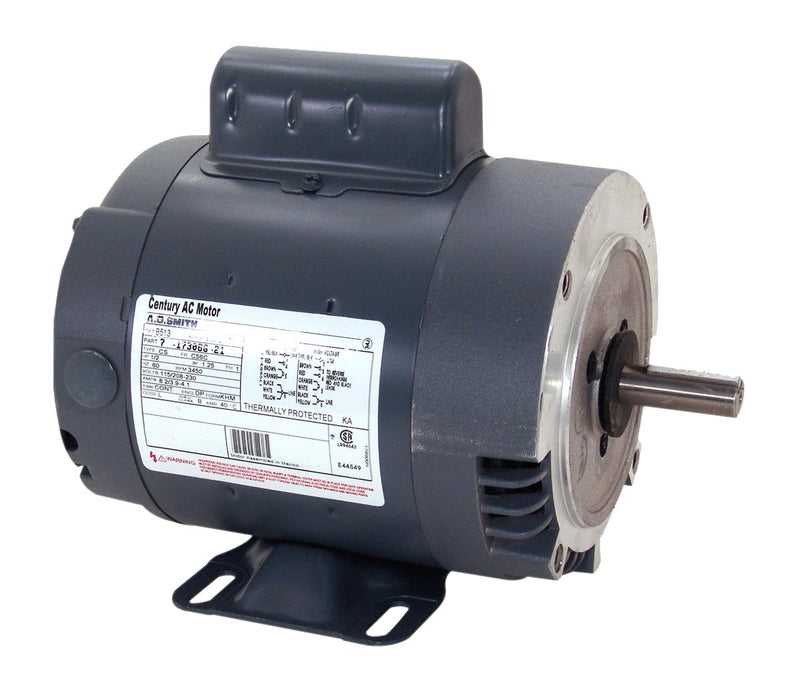

Century AO Smith B672 Cap Start C-Face Motor, 1 HP, 3450 RPM, 115, 208-230V, 56C Frame, Replaced w/ Century B672ES

CenturySKU: c2091214
MPN : B672
Weight : 15.0 lb

filler

Price:
$345.81 $421.72

Availability : Usually Ships in 3-5 Business Days
  • Features: 40 degree C ambient

The B672 is NLA replaced by the B672ES

Item: General Purpose AC Motor, Motor Type: Capacitor-Start, HP: 1, Nameplate RPM: 3450, Voltage: 115/208-230, Frame: 56C, Enclosure: Drip Proof, Rotation: CW/CCW, Hz: 60, Phase: 1, Speeds: 1, Service Factor: 1.15, Bearings: Ball, Base: Rigid, Shaft Type: Key, Shaft Number: 1, Shaft Length: 2.06", Shaft Height: 3.5", Shaft Dia.: 0.625", "C" Dim: 11.4, Protection: Auto, Thermal Protection: Yes, Cooling: Ambient.
ItemGeneral Purpose AC Motor
Motor TypeCapacitor-Start
HP1
Nameplate RPM3450
Voltage115/208-230
Frame56C
EnclosureDrip Proof
RotationCW/CCW
Hz60
Phase1
Speeds1
Service Factor1.15
BearingsBall
BaseRigid
Shaft TypeKey
Shaft Number1
Shaft Length2.06"
Shaft Height3.5"
Shaft Dia.0.625"
"C" Dim11.4
ProtectionAuto
Thermal ProtectionYes
CoolingAmbient
