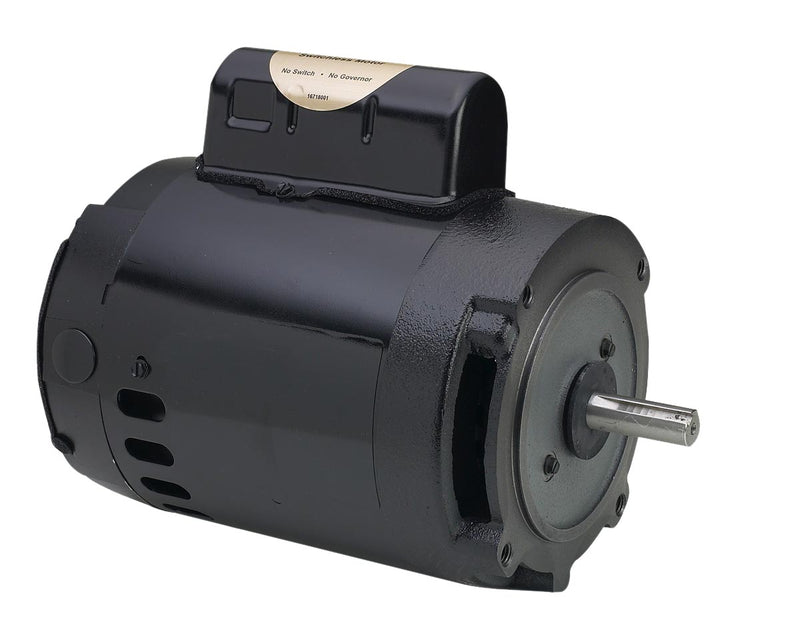

Century AO Smith B774 C-Face Pool Motor, 3 HP, PSC, 3450 RPM, 208-230V, 56C Frame

CenturySKU: c2091017
MPN : B774
Weight : 15.0 lb

filler

Price:
$583.71 $711.85

Availability : Usually Ships in 3-5 Business Days
  • Features: 50 degree C ambient, Stainless steel shaft, 304 bearing shaft end, Energy efficient

Item: Pool and Spa Pump Motor, Motor Type: PSC, HP: 3, Nameplate RPM: 3450, Voltage: 208-230, Frame: 56C, Enclosure: Drip Proof, Rotation: CCW, Hz: 60, Phase: 1, Speeds: 1, Service Factor: 1.15, Insulation Class: B, Bearings: Ball, Base: None, Shaft Type: Key, Shaft Number: 1, Shaft Length: 1.875", Shaft Dia.: 0.625", "C" Dim: 14.05, Protection: Auto, Thermal Protection: Yes, Cooling: Ambient.

ItemPool and Spa Pump Motor
Motor TypePSC
HP3
Nameplate RPM3450
Voltage208-230
Frame56C
EnclosureDrip Proof
RotationCCW
Hz60
Phase1
Speeds1
Service Factor1.15
Insulation ClassB
BearingsBall
BaseNone
Shaft TypeKey
Shaft Number1
Shaft Length1.875"
Shaft Dia.0.625"
"C" Dim14.05
ProtectionAuto
Thermal ProtectionYes
CoolingAmbient
