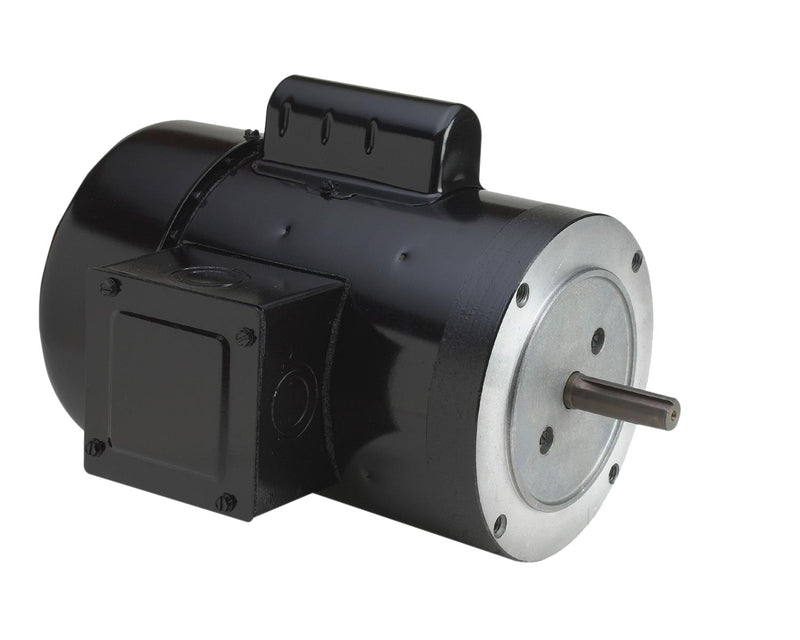

Century AO Smith B793 Cap Start C-Face Motor, 1 HP, 3450 RPM, 115, 208-230V, 56C Frame

CenturySKU: c2091243
MPN : B793
Weight : 15.0 lb

filler

Price:
$109.00 $132.93

Availability : Usually Ships in 3-5 Business Days
  • Features: 40 degree C ambient, Gasketed conduit box

Item: General Purpose AC Motor, Motor Type: Capacitor-Start, HP: 1, Nameplate RPM: 3450, Voltage: 115/208-230, Frame: 56C, Enclosure: Totally Enclosed, Rotation: CW/CCW, Hz: 60, Phase: 1, Speeds: 1, Service Factor: 1.15, Insulation Class: B, Bearings: Ball, Shaft Type: Key, Shaft Number: 1, Shaft Length: 2.06", Shaft Dia.: 0.625", "C" Dim: 12.2, Protection: None, Thermal Protection: No, Cooling: Air Over.

ItemGeneral Purpose AC Motor
Motor TypeCapacitor-Start
HP1
Nameplate RPM3450
Voltage115/208-230
Frame56C
EnclosureTotally Enclosed
RotationCW/CCW
Hz60
Phase1
Speeds1
Service Factor1.15
Insulation ClassB
BearingsBall
Shaft TypeKey
Shaft Number1
Shaft Length2.06"
Shaft Dia.0.625"
"C" Dim12.2
ProtectionNone
Thermal ProtectionNo
CoolingAir Over
