- Features: 50 degree C ambient, 304 bearing shaft end, Energy efficient

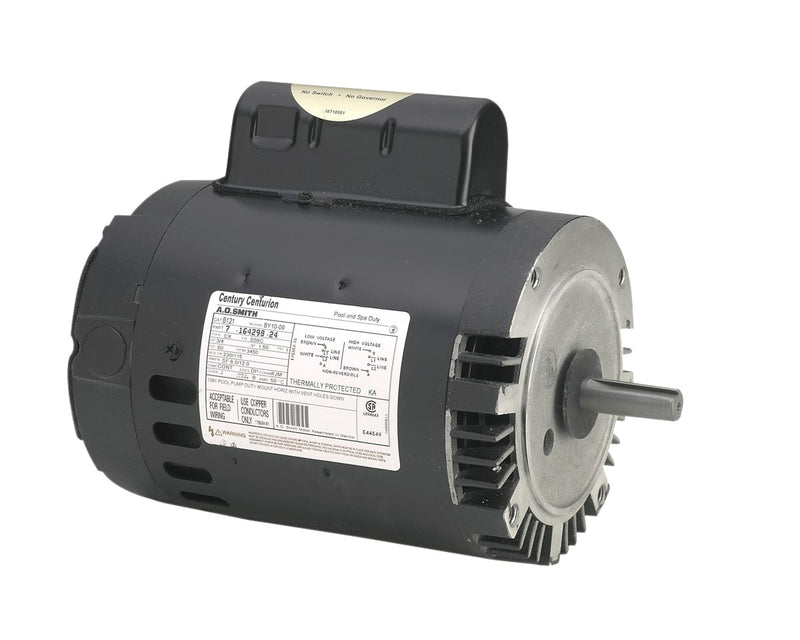

Item: Pool and Spa Pump Motor, Motor Type: PSC, HP: 3, Nameplate RPM: 3450, Voltage: 208-230, Frame: 56C, Enclosure: Drip Proof, Rotation: CCW, Hz: 60, Phase: 1, Speeds: 1, Service Factor: 1.15, Insulation Class: B, Bearings: Ball, Base: None, Shaft Type: Key, Shaft Number: 1, Shaft Length: 1.875", Shaft Dia.: 0.625", "C" Dim: 13.65, Protection: Auto, Thermal Protection: Yes, Cooling: Ambient.
| Item | Pool and Spa Pump Motor |
| Motor Type | PSC |
| HP | 3 |
| Nameplate RPM | 3450 |
| Voltage | 208-230 |
| Frame | 56C |
| Enclosure | Drip Proof |
| Rotation | CCW |
| Hz | 60 |
| Phase | 1 |
| Speeds | 1 |
| Service Factor | 1.15 |
| Insulation Class | B |
| Bearings | Ball |
| Base | None |
| Shaft Type | Key |
| Shaft Number | 1 |
| Shaft Length | 1.875" |
| Shaft Dia. | 0.625" |
| "C" Dim | 13.65 |
| Protection | Auto |
| Thermal Protection | Yes |
| Cooling | Ambient |
