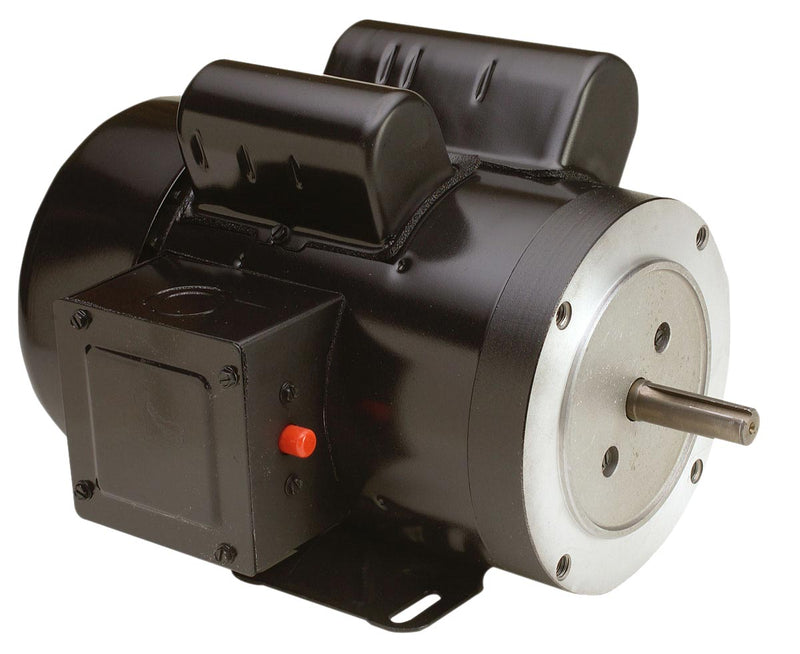

Century AO Smith B861 Washer Motor, 2 HP, Cap Start Run, 3600 RPM, 115, 208-230V, 56HC Frame

CenturySKU: c2090313
MPN : B861
Weight : 15.0 lb
filler

Price:
$554.24 $675.90

Availability : Usually Ships in 3-5 Business Days
  • Features: 40 degree C ambient, Two Step Varnish Treatment, C Face

Item: General Purpose AC Motor, Motor Type: Capacitor-Start/Capacitor-Run, HP: 2, Nameplate RPM: 3600, Voltage: 115/208-230, Frame: 56HC, Enclosure: Drip Proof, Rotation: CW/CCW, Hz: 60, Phase: 1, Speeds: 1, Service Factor: 1.15, Insulation Class: B, Bearings: Ball, Base: Rigid, Shaft Type: Key, Shaft Number: 1, Shaft Length: 1.875", Shaft Height: 3.5", Shaft Dia.: 0.625", "C" Dim: 14.2, Protection: Manual, Thermal Protection: Yes, Cooling: Ambient.

ItemGeneral Purpose AC Motor
Motor TypeCapacitor-Start/Capacitor-Run
HP2
Nameplate RPM3600
Voltage115/208-230
Frame56HC
EnclosureDrip Proof
RotationCW/CCW
Hz60
Phase1
Speeds1
Service Factor1.15
Insulation ClassB
BearingsBall
BaseRigid
Shaft TypeKey
Shaft Number1
Shaft Length1.875"
Shaft Height3.5"
Shaft Dia.0.625"
"C" Dim14.2
ProtectionManual
Thermal ProtectionYes
CoolingAmbient
