- Features: 40 degree C ambient, Vertical shaft orientation allowed

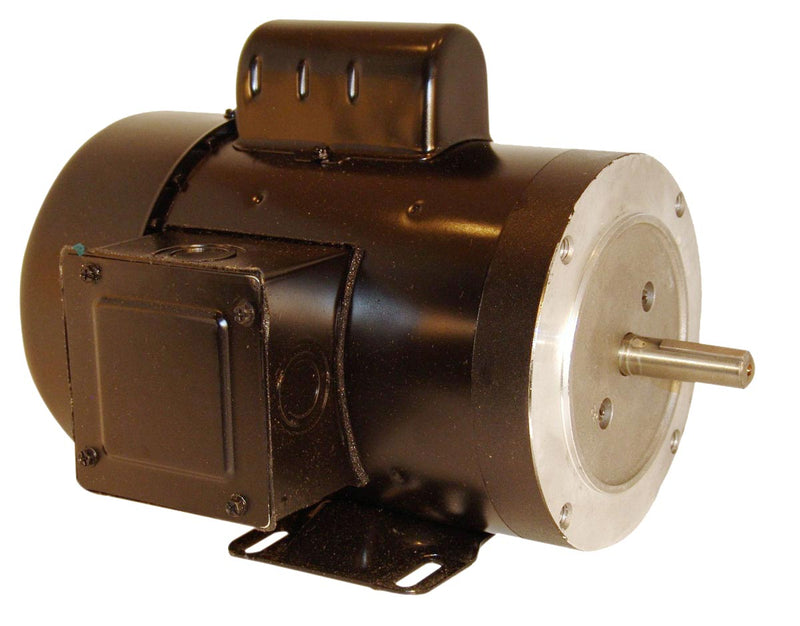

Item: General Purpose AC Motor, Motor Type: Capacitor-Start, HP: 1, Nameplate RPM: 3600, Voltage: 115/208-230, Frame: 56C, Enclosure: Totally Enclosed, Rotation: CW/CCW, Hz: 60, Phase: 1, Speeds: 1, Service Factor: 1.15, Insulation Class: B, Bearings: Ball, Base: Removable, Shaft Type: Key, Shaft Number: 1, Shaft Length: 1.875", Shaft Height: 3.5", Shaft Dia.: 0.625", "C" Dim: 12.2, Protection: None, Thermal Protection: No, Cooling: Fan Cooled.
| Item | General Purpose AC Motor |
| Motor Type | Capacitor-Start |
| HP | 1 |
| Nameplate RPM | 3600 |
| Voltage | 115/208-230 |
| Frame | 56C |
| Enclosure | Totally Enclosed |
| Rotation | CW/CCW |
| Hz | 60 |
| Phase | 1 |
| Speeds | 1 |
| Service Factor | 1.15 |
| Insulation Class | B |
| Bearings | Ball |
| Base | Removable |
| Shaft Type | Key |
| Shaft Number | 1 |
| Shaft Length | 1.875" |
| Shaft Height | 3.5" |
| Shaft Dia. | 0.625" |
| "C" Dim | 12.2 |
| Protection | None |
| Thermal Protection | No |
| Cooling | Fan Cooled |
