- Features: 40 degree C ambient, Stainless steel shaft, 304 bearing shaft end, Energy efficient, Low speed microswitch

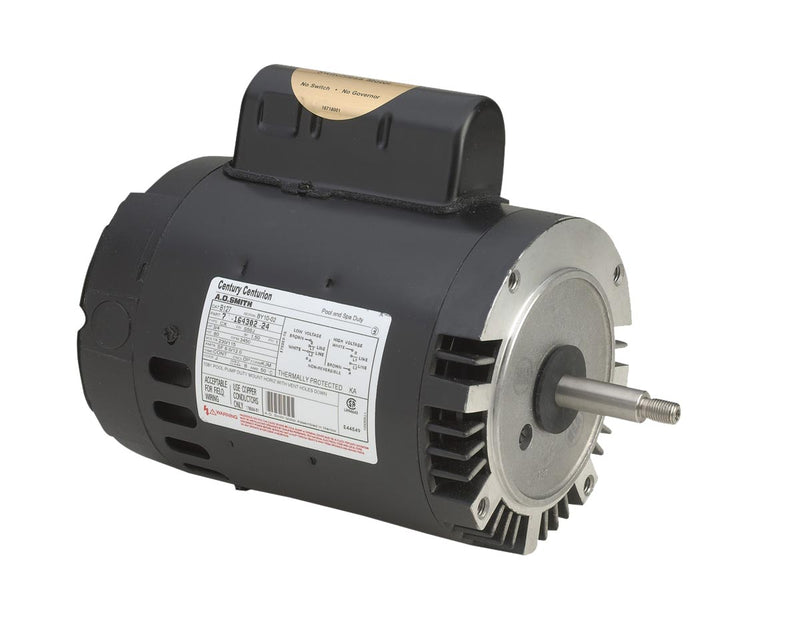

Item: Pool and Spa Pump Motor, Motor Type: PSC, HP: 1/2, 1/16, Nameplate RPM: 3450, Voltage: 115, Frame: 56J, Enclosure: Drip Proof, Rotation: CCW, Hz: 60, Phase: 1, Speeds: 2, Service Factor: 1.6, Insulation Class: B, Bearings: Ball, Base: None, Shaft Type: Threaded, Shaft Number: 1, Shaft Length: 1.875", Shaft Dia.: 0.625", "C" Dim: 12.3, Protection: Auto, Thermal Protection: Yes, Cooling: Ambient.
| Item | Pool and Spa Pump Motor |
| Motor Type | PSC |
| HP | 1/2, 1/16 |
| Nameplate RPM | 3450 |
| Voltage | 115 |
| Frame | 56J |
| Enclosure | Drip Proof |
| Rotation | CCW |
| Hz | 60 |
| Phase | 1 |
| Speeds | 2 |
| Service Factor | 1.6 |
| Insulation Class | B |
| Bearings | Ball |
| Base | None |
| Shaft Type | Threaded |
| Shaft Number | 1 |
| Shaft Length | 1.875" |
| Shaft Dia. | 0.625" |
| "C" Dim | 12.3 |
| Protection | Auto |
| Thermal Protection | Yes |
| Cooling | Ambient |
