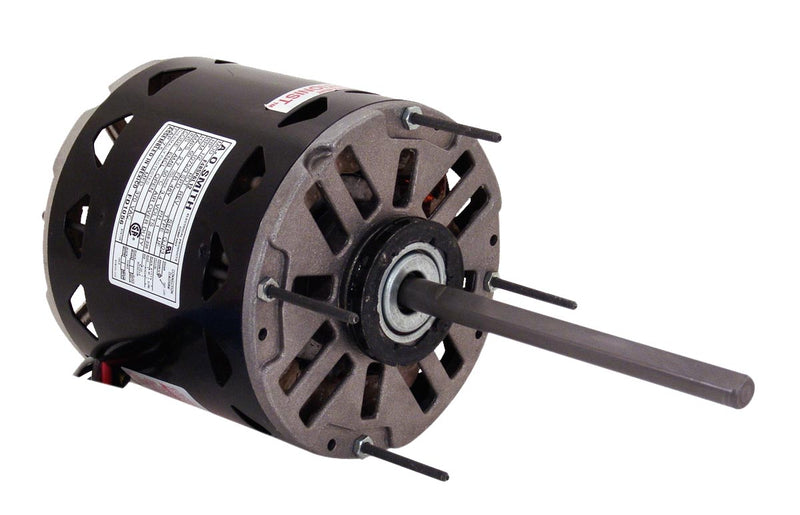

Century AO Smith BD1106 Blower Motor, 1 HP, PSC, 1075 RPM, 208-230V

CenturySKU: c2091430
MPN : BD1106
Weight : 15.0 lb

filler

Price:
$295.66 $360.56

Availability : Usually Ships in 3-5 Business Days
  • Features: Reversing plug, Includes mounting rings, 23" leads, 40 degree C ambient, Double flat shaft, 2-1/2" dia rings

Item: Direct Drive Blower Motor, Motor Type: PSC, HP: 1, Nameplate RPM: 1075, Voltage: 208-230, Enclosure: Open, Rotation: CW/CCW, Hz: 60, Phase: 1, Speeds: 3, Bearings: Ball, Shaft Number: 1, Shaft Length: 6.44", Shaft Dia.: 0.5", Ring to Ring Center: 6.17", Thermal Protection: Yes, Cooling: Air Over, Capacitor: 20M 370V.

ItemDirect Drive Blower Motor
Motor TypePSC
HP1
Nameplate RPM1075
Voltage208-230
EnclosureOpen
RotationCW/CCW
Hz60
Phase1
Speeds3
BearingsBall
Shaft Number1
Shaft Length6.44"
Shaft Dia.0.5"
Ring to Ring Center6.17"
Thermal ProtectionYes
CoolingAir Over
Capacitor20M 370V
