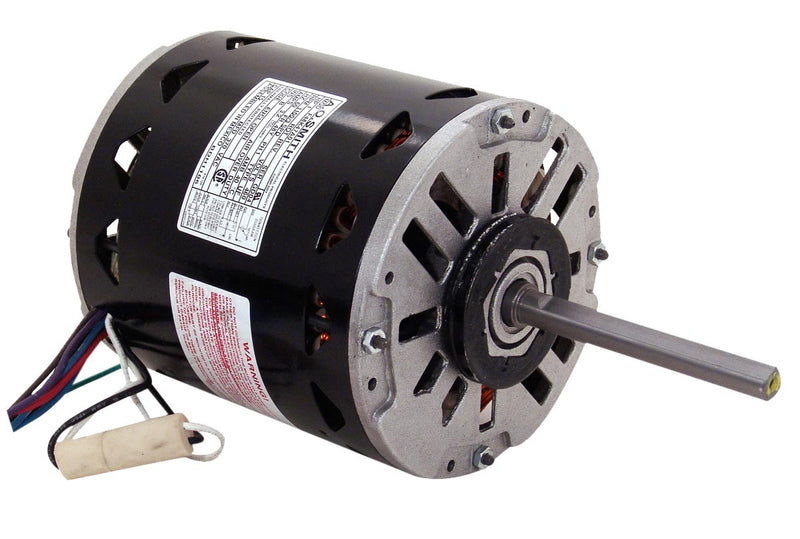

Century AO Smith BDH1106 Blower Motor, 1 HP, PSC, 1100 RPM, 460V

CenturySKU: c2091431
MPN : BDH1106
Weight : 15.0 lb

filler

Price:
$351.80 $429.02

Availability : Usually Ships in 3-5 Business Days
  • Features: Reversing plug, Includes mounting rings, 23" leads, 40 degree C ambient, Double flat shaft, Reconnect for separate sppeds, No extended thru-bolts

Item: Direct Drive Blower Motor, Motor Type: PSC, HP: 1, Nameplate RPM: 1100, Voltage: 460, Enclosure: Open, Rotation: CW/CCW, Hz: 60, Phase: 1, Speeds: 3, Bearings: Ball, Shaft Number: 1, Shaft Length: 6.44", Shaft Dia.: 0.5", Ring to Ring Center: 6.42", Thermal Protection: Yes, Cooling: Air Over, Capacitor: 15M 370V.

ItemDirect Drive Blower Motor
Motor TypePSC
HP1
Nameplate RPM1100
Voltage460
EnclosureOpen
RotationCW/CCW
Hz60
Phase1
Speeds3
BearingsBall
Shaft Number1
Shaft Length6.44"
Shaft Dia.0.5"
Ring to Ring Center6.42"
Thermal ProtectionYes
CoolingAir Over
Capacitor15M 370V
