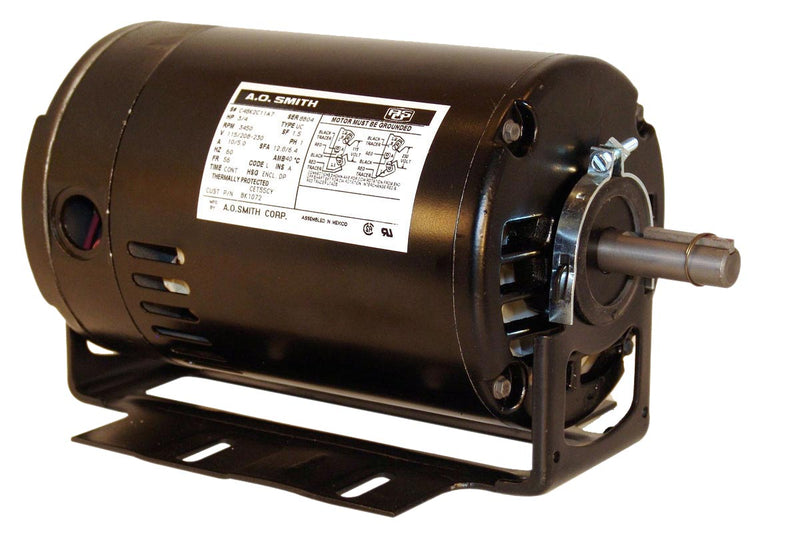

Century AO Smith BK1102 Cap Start Resilient Motor, 1 HP, 3450 RPM, 115, 208-230V, 56 Frame

CenturySKU: c2091180
MPN : BK1102
Weight : 15.0 lb

filler

Price:
$452.51 $551.84

Availability : Usually Ships in 3-5 Business Days
  • Features: 40 degree C ambient, Terminal board, Start capacitor inside, Sealed switch design, Moderate start torque

Item: Belt Drive Motor, Motor Type: Capacitor-Start, HP: 1, Nameplate RPM: 3450, Voltage: 115/208-230, Frame: 56, Enclosure: Drip Proof, Rotation: CW/CCW, Hz: 60, Phase: 1, Speeds: 1, Service Factor: 1.4, Insulation Class: A, Bearings: Ball, Base: Resilient, Shaft Type: Key, Shaft Number: 1, Shaft Length: 1.875", Shaft Height: 3.5", Shaft Dia.: 0.625", "C" Dim: 11.9, Protection: Auto, Thermal Protection: Yes, Cooling: Ambient.

ItemBelt Drive Motor
Motor TypeCapacitor-Start
HP1
Nameplate RPM3450
Voltage115/208-230
Frame56
EnclosureDrip Proof
RotationCW/CCW
Hz60
Phase1
Speeds1
Service Factor1.4
Insulation ClassA
BearingsBall
BaseResilient
Shaft TypeKey
Shaft Number1
Shaft Length1.875"
Shaft Height3.5"
Shaft Dia.0.625"
"C" Dim11.9
ProtectionAuto
Thermal ProtectionYes
CoolingAmbient
