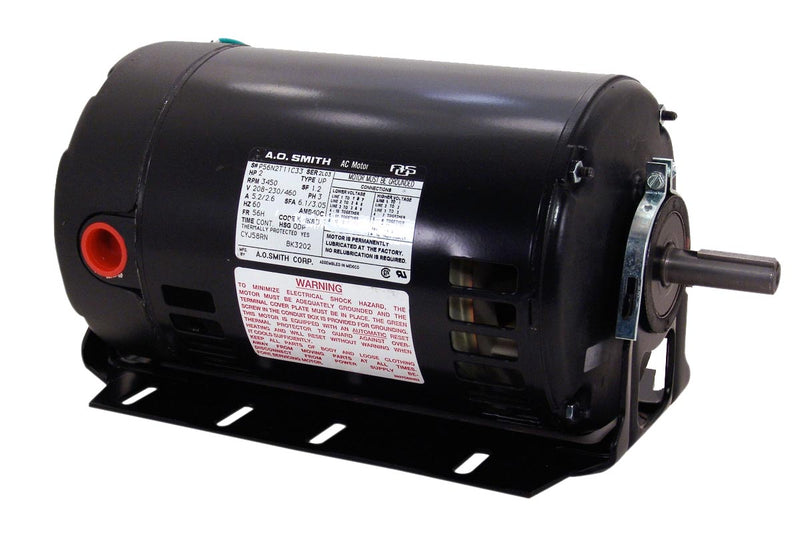

Century AO Smith BK3102 3-Phase Resilient Motor, 1 HP, 3450 RPM, 230, 460V, 56H Frame

CenturySKU: c2091546
MPN : BK3102
Weight : 15.0 lb
filler

Price:
$472.96 $576.78

Availability : Usually Ships in 3-5 Business Days
  • Features: 40 degree C ambient

Item: General Purpose AC Motor, Motor Type: 3-Phase, HP: 1, Nameplate RPM: 3450, Voltage: 230/460, Frame: 56H, Enclosure: Drip Proof, Rotation: CW/CCW, Hz: 60, Phase: 3, Speeds: 1, Service Factor: 1.4, Insulation Class: A, Bearings: Ball, Base: Resilient, Shaft Type: Key, Shaft Number: 1, Shaft Length: 1.875", Shaft Height: 3.5", Shaft Dia.: 0.625", "C" Dim: 11.9, Protection: Auto, Thermal Protection: Yes, Cooling: Ambient.

ItemGeneral Purpose AC Motor
Motor Type3-Phase
HP1
Nameplate RPM3450
Voltage230/460
Frame56H
EnclosureDrip Proof
RotationCW/CCW
Hz60
Phase3
Speeds1
Service Factor1.4
Insulation ClassA
BearingsBall
BaseResilient
Shaft TypeKey
Shaft Number1
Shaft Length1.875"
Shaft Height3.5"
Shaft Dia.0.625"
"C" Dim11.9
ProtectionAuto
Thermal ProtectionYes
CoolingAmbient
