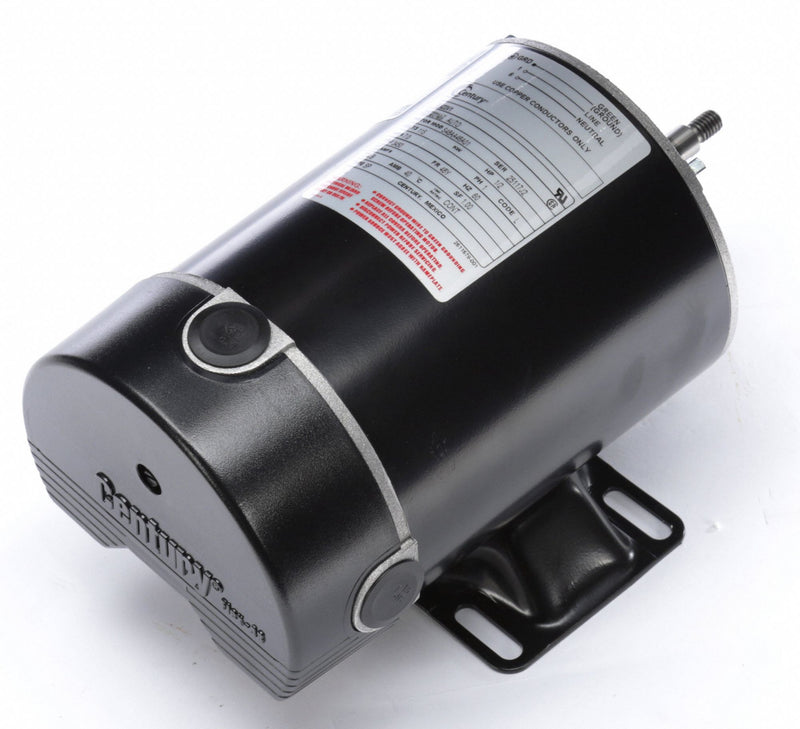

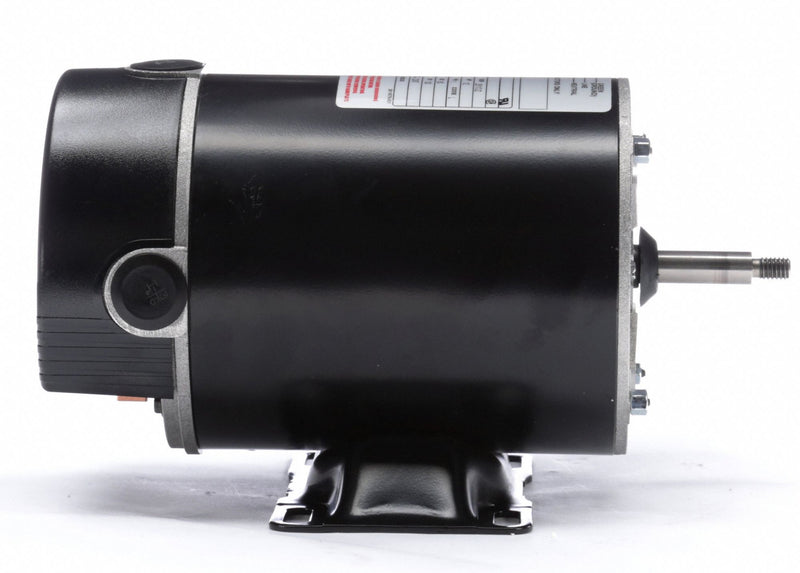

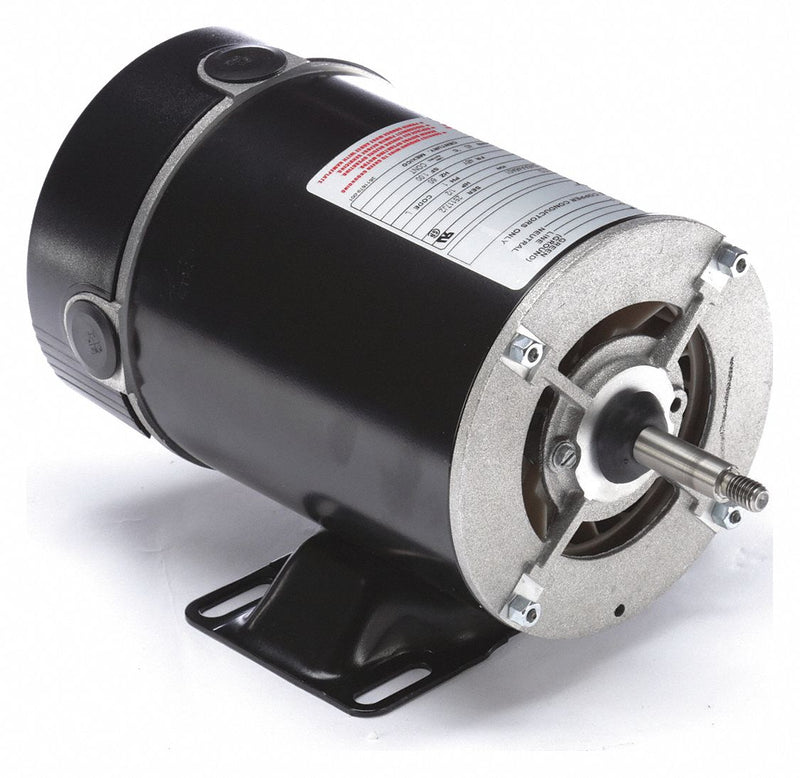

Century 1/2 HP Pool and Spa Pump Motor, Split-Phase, 115V, 48Y Frame - BN23V1

CenturySKU: C2763147
MPN : BN23V1
Weight : 14.65 lb
filler

Price:
$192.57 $234.84

Availability : Usually Ships in 3-5 Business Days

This replacement motor can be used with most leading brands of tub, spa, and above-ground pool pumps with threaded-shaft drives. 12 and 3 o'clock conduit entries provide wiring flexibility. UL Recognized and CSA Certified.

ItemPool and Spa Pump Motor
Motor ApplicationPump
Motor Sub ApplicationPool and Spa Pump
Motor DesignSplit-Phase
Motor Enclosure DesignOpen Dripproof
HP1/2
Nameplate RPM3450
Frame48Y
Motor Shaft RotationCCWSE
Voltage115
Full Load Amps7
Phase1
Hz60
Motor Mounting TypeRigid Base
Motor BearingsBall
FinishBlack
ShaftThreaded 3/8-16 UNC-2A RH
Shaft MaterialSteel
Motor Thermal ProtectionAuto
Motor Service Factor1
Shaft Dia.1/2 in
Shaft Length1 13/16 in
Ins. ClassB
RPM Range3001-3600
StandardsCSA Pending, UL
Voltage Compatibility115, 115/208-230, 115/230, 120, 120/240
