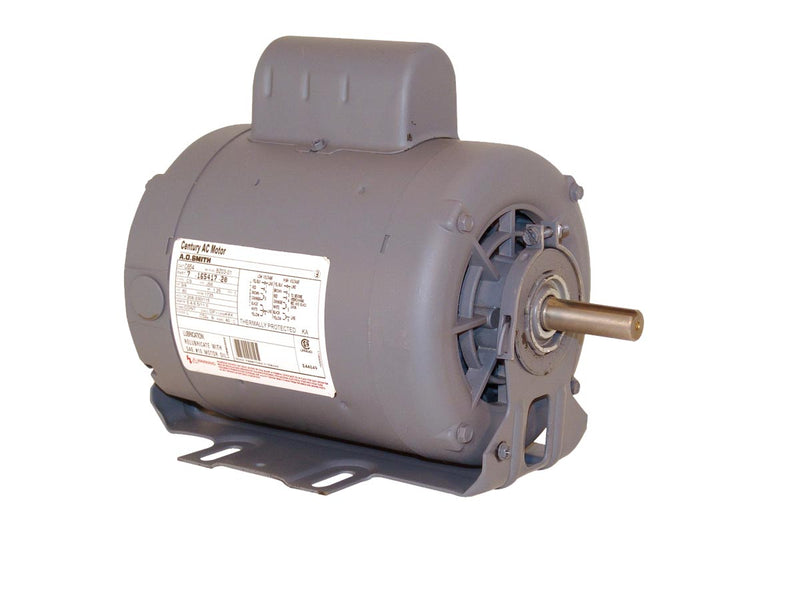

Century AO Smith C048 Direct Drive Barn Fan Motor, 1/2 HP, PSC, 900 RPM, 115, 230V, 48Z Frame

CenturySKU: c2090792
MPN : C048
Weight : 15.0 lb
filler

Price:
$391.94 $477.98

Availability : Usually Ships in 3-5 Business Days
  • Features: 40 degree C ambient, Two flats, Shaft sleeve & key supplied for 5/8 dia.

Item: Direct Drive Blower Motor, Motor Type: PSC, HP: 1/2, Nameplate RPM: 900, Voltage: 115/230, Frame: 48Z, Enclosure: Totally Enclosed, Rotation: CW/CCW, Hz: 60, Phase: 1, Speeds: 1, Service Factor: 1, Insulation Class: B, Bearings: Ball, Base: Resilient, Shaft Type: Key, Shaft Number: 1, Shaft Length: 2.5", Shaft Height: 3", Shaft Dia.: 0.5", "C" Dim: 12.1, Protection: Auto, Thermal Protection: Yes, Cooling: Air Over.

ItemDirect Drive Blower Motor
Motor TypePSC
HP1/2
Nameplate RPM900
Voltage115/230
Frame48Z
EnclosureTotally Enclosed
RotationCW/CCW
Hz60
Phase1
Speeds1
Service Factor1
Insulation ClassB
BearingsBall
BaseResilient
Shaft TypeKey
Shaft Number1
Shaft Length2.5"
Shaft Height3"
Shaft Dia.0.5"
"C" Dim12.1
ProtectionAuto
Thermal ProtectionYes
CoolingAir Over
