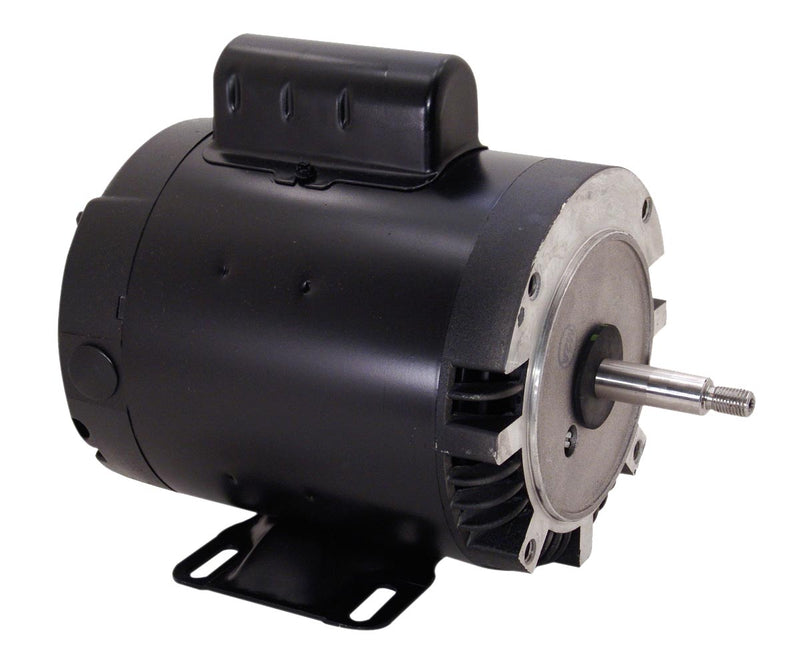

Century AO Smith C051 Cap Start C-Face Motor, 1/4 HP, 1800 RPM, 115, 230V, 56J Frame

CenturySKU: c2091224
MPN : C051
Weight : 15.0 lb
filler

Price:
$274.99 $335.35

Availability : Usually Ships in 3-5 Business Days
  • Features: 40 degree C ambient, Stainless steel threaded shaft for pump duty

Item: General Purpose AC Motor, Motor Type: Capacitor-Start, HP: 1/4, Nameplate RPM: 1800, Voltage: 115/230, Frame: 56J, Enclosure: Drip Proof, Rotation: CW, Hz: 60, Phase: 1, Speeds: 1, Service Factor: 1.35, Insulation Class: B, Bearings: Ball, Base: Removable, Shaft Type: Threaded, Shaft Number: 1, Shaft Length: 1.875", Shaft Dia.: 0.625", "C" Dim: 10.6, Protection: Auto, Thermal Protection: Yes, Cooling: Ambient.

ItemGeneral Purpose AC Motor
Motor TypeCapacitor-Start
HP1/4
Nameplate RPM1800
Voltage115/230
Frame56J
EnclosureDrip Proof
RotationCW
Hz60
Phase1
Speeds1
Service Factor1.35
Insulation ClassB
BearingsBall
BaseRemovable
Shaft TypeThreaded
Shaft Number1
Shaft Length1.875"
Shaft Dia.0.625"
"C" Dim10.6
ProtectionAuto
Thermal ProtectionYes
CoolingAmbient
