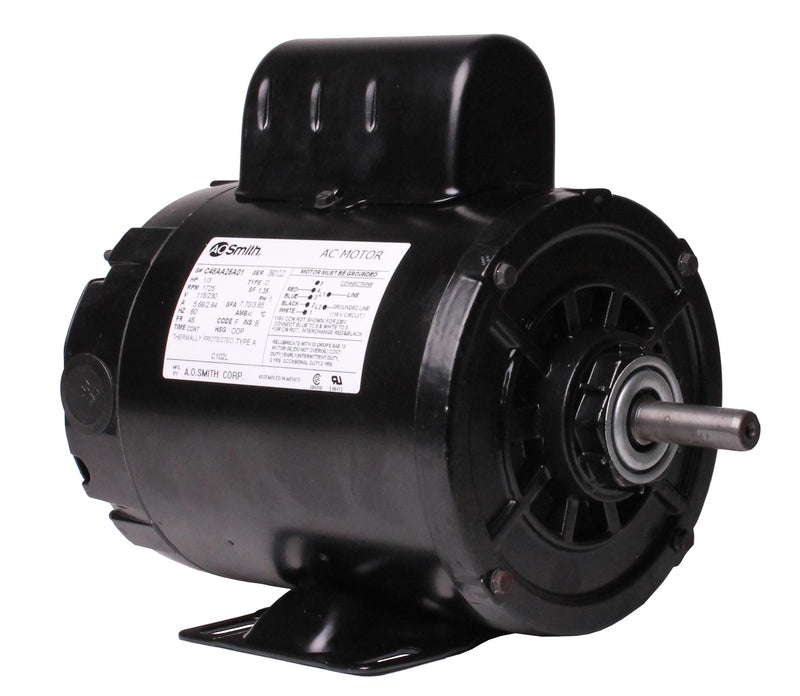

Century AO Smith C102L Cap Start Rigid Motor, 1/3 HP, 1725 RPM, 115, 230V, 48 Frame, Replaced w/ Century C102LES

CenturySKU: c2091080
MPN : C102L
Weight : 15.0 lb

filler

Price:
$447.84 $546.15

Availability : Usually Ships in 3-5 Business Days
  • Features: 40 degree C ambient

Item: Belt Drive Motor, Motor Type: Capacitor-Start, HP: 1/3, Nameplate RPM: 1725, Voltage: 115/230, Frame: 48, Enclosure: Drip Proof, Rotation: CW/CCW, Hz: 60, Phase: 1, Speeds: 1, Service Factor: 1.35, Insulation Class: B, Bearings: Ball, Base: Resilient, Shaft Type: Flat, Shaft Number: 1, Shaft Length: 1.625", Shaft Height: 3", Shaft Dia.: 0.5", "C" Dim: 9.8, Protection: Auto, Thermal Protection: Yes, Cooling: Ambient.

ItemBelt Drive Motor
Motor TypeCapacitor-Start
HP1/3
Nameplate RPM1725
Voltage115/230
Frame48
EnclosureDrip Proof
RotationCW/CCW
Hz60
Phase1
Speeds1
Service Factor1.35
Insulation ClassB
BearingsBall
BaseResilient
Shaft TypeFlat
Shaft Number1
Shaft Length1.625"
Shaft Height3"
Shaft Dia.0.5"
"C" Dim9.8
ProtectionAuto
Thermal ProtectionYes
CoolingAmbient
