- Cross Reference: Taco
- Features: Red paint, Replaces Taco

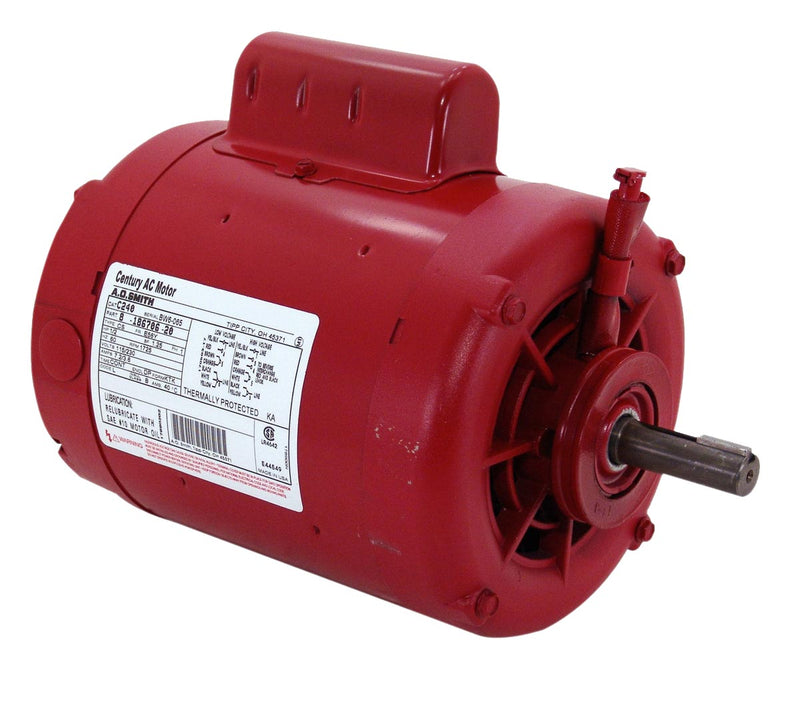

Item: Water Circulator Motor, HP: 1/2, Nameplate RPM: 1725, Voltage: 115/230, Frame: 56Y, Enclosure: Drip Proof, Rotation: CW/CCW, Hz: 60, Phase: 1, Speeds: 1, Service Factor: 1.25, Bearings: Sleeve, Base: Resilient, Shaft Type: Flat, Shaft Number: 1, Shaft Length: 1.875", Shaft Dia.: 0.625", Ring to Ring Center: 8.94", Protection: Auto, Thermal Protection: Yes, Cooling: Ambient.
| Item | Water Circulator Motor |
| HP | 1/2 |
| Nameplate RPM | 1725 |
| Voltage | 115/230 |
| Frame | 56Y |
| Enclosure | Drip Proof |
| Rotation | CW/CCW |
| Hz | 60 |
| Phase | 1 |
| Speeds | 1 |
| Service Factor | 1.25 |
| Bearings | Sleeve |
| Base | Resilient |
| Shaft Type | Flat |
| Shaft Number | 1 |
| Shaft Length | 1.875" |
| Shaft Dia. | 0.625" |
| Ring to Ring Center | 8.94" |
| Protection | Auto |
| Thermal Protection | Yes |
| Cooling | Ambient |
