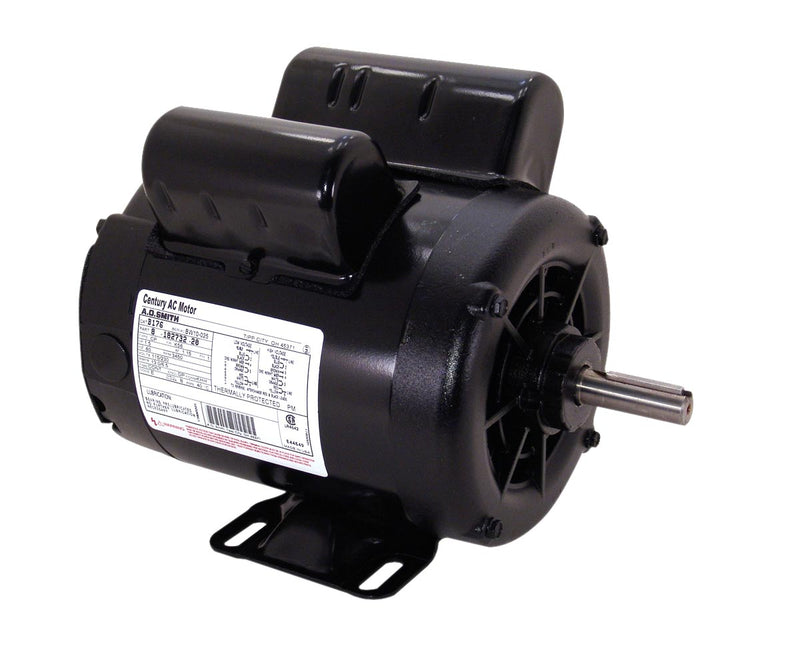

Century AO Smith C324 Cap Start Rigid Motor, 3/4 HP, Cap Start Run, 1140 RPM, 115, 208-230V, 56 Frame, REPLACED AS CENTURY UC234ES

CenturySKU: c2091095
MPN : C324
Weight : 15.0 lb

filler

Price:
$586.11 $714.77

Availability : Usually Ships in 3-5 Business Days
  • Features: 40 degree C ambient

REPLACED AS CENTURY UC234ES

Item: Belt Drive Motor, Motor Type: Capacitor-Start/Capacitor-Run, HP: 3/4, Nameplate RPM: 1140, Voltage: 115/208-230, Frame: 56, Enclosure: Drip Proof, Rotation: CW/CCW, Hz: 60, Phase: 1, Speeds: 1, Service Factor: 1.25, Insulation Class: B, Bearings: Ball, Base: Rigid, Shaft Type: Key, Shaft Number: 1, Shaft Length: 1.875", Shaft Height: 3.5", Shaft Dia.: 0.625", "C" Dim: 12.2, Protection: None, Thermal Protection: No, Cooling: Ambient.
ItemBelt Drive Motor
Motor TypeCapacitor-Start/Capacitor-Run
HP3/4
Nameplate RPM1140
Voltage115/208-230
Frame56
EnclosureDrip Proof
RotationCW/CCW
Hz60
Phase1
Speeds1
Service Factor1.25
Insulation ClassB
BearingsBall
BaseRigid
Shaft TypeKey
Shaft Number1
Shaft Length1.875"
Shaft Height3.5"
Shaft Dia.0.625"
"C" Dim12.2
ProtectionNone
Thermal ProtectionNo
CoolingAmbient
