- Features: 40 degree C ambient, "N" flange bracket, Torque switch and governor, Double sealed ball bearing

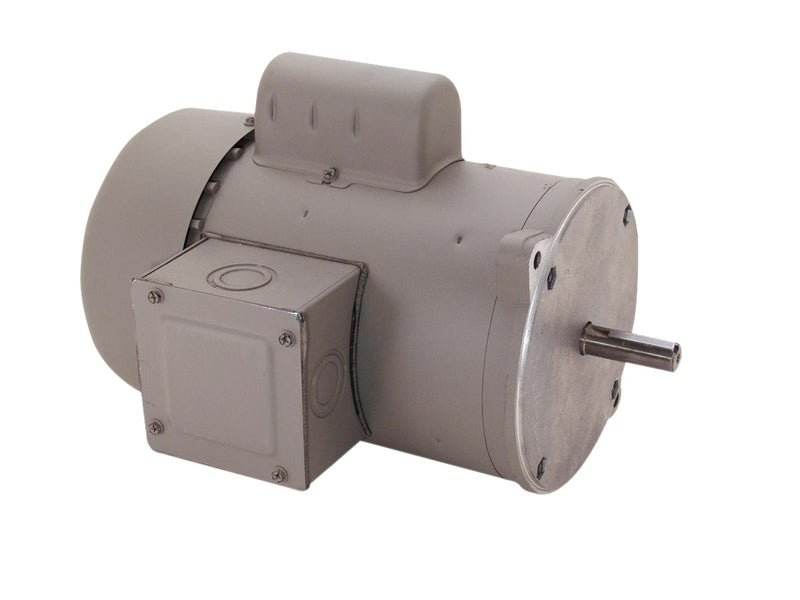

Item: Farm Duty Motor, Motor Type: Capacitor-Start, HP: 3/4, Nameplate RPM: 1725, Voltage: 115/230, Frame: 56N, Enclosure: Totally Enclosed, Rotation: CW/CCW, Hz: 60, Phase: 1, Speeds: 1, Service Factor: 1, Insulation Class: B, Bearings: Ball, Base: None, Shaft Type: Key, Shaft Number: 1, Shaft Length: 1.75", Shaft Dia.: 0.5", "C" Dim: 13.3, Protection: Manual, Thermal Protection: Yes, Cooling: Fan Cooled.
| Item | Farm Duty Motor |
| Motor Type | Capacitor-Start |
| HP | 3/4 |
| Nameplate RPM | 1725 |
| Voltage | 115/230 |
| Frame | 56N |
| Enclosure | Totally Enclosed |
| Rotation | CW/CCW |
| Hz | 60 |
| Phase | 1 |
| Speeds | 1 |
| Service Factor | 1 |
| Insulation Class | B |
| Bearings | Ball |
| Base | None |
| Shaft Type | Key |
| Shaft Number | 1 |
| Shaft Length | 1.75" |
| Shaft Dia. | 0.5" |
| "C" Dim | 13.3 |
| Protection | Manual |
| Thermal Protection | Yes |
| Cooling | Fan Cooled |
