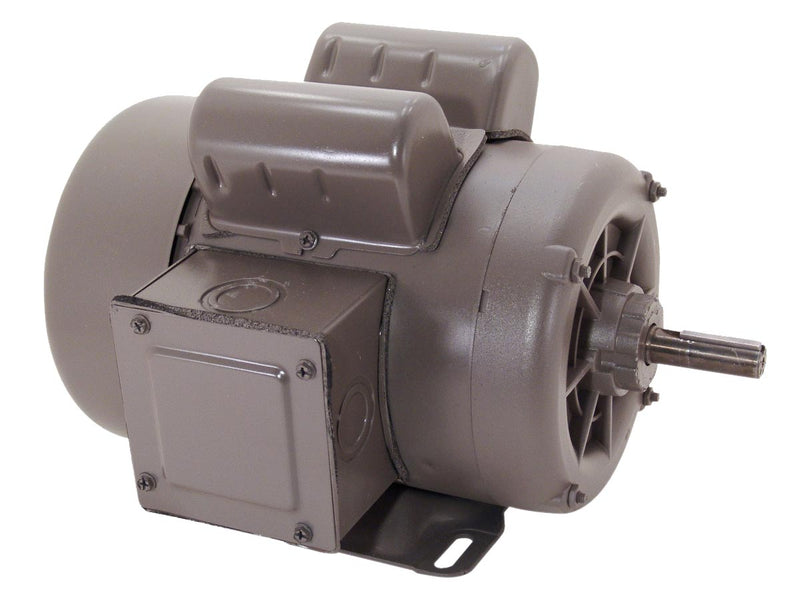

Century AO Smith C339 Farm Duty Motor, 1 HP, Cap Start Run, 1800 RPM, 115, 230V, 56 Frame

CenturySKU: c2090652
MPN : C339
Weight : 15.0 lb
filler

Price:
$635.80 $775.37

Availability : Usually Ships in 3-5 Business Days
  • Features: Instant Reverse Motor, Solid State Switching, 40 degreee C ambient, Low temperature grease

Item: Farm Duty Motor, Motor Type: Capacitor-Start/Capacitor-Run, HP: 1, Nameplate RPM: 1800, Voltage: 115/230, Frame: 56, Enclosure: Totally Enclosed, Rotation: CW/CCW, Hz: 60, Phase: 1, Speeds: 1, Service Factor: 1, Insulation Class: B, Bearings: Ball, Base: Rigid, Shaft Type: Key, Shaft Number: 1, Shaft Length: 1.875", Shaft Height: 3.5", Shaft Dia.: 0.625", "C" Dim: 13.36, Protection: Manual, Thermal Protection: Yes, Cooling: Fan Cooled.

ItemFarm Duty Motor
Motor TypeCapacitor-Start/Capacitor-Run
HP1
Nameplate RPM1800
Voltage115/230
Frame56
EnclosureTotally Enclosed
RotationCW/CCW
Hz60
Phase1
Speeds1
Service Factor1
Insulation ClassB
BearingsBall
BaseRigid
Shaft TypeKey
Shaft Number1
Shaft Length1.875"
Shaft Height3.5"
Shaft Dia.0.625"
"C" Dim13.36
ProtectionManual
Thermal ProtectionYes
CoolingFan Cooled
