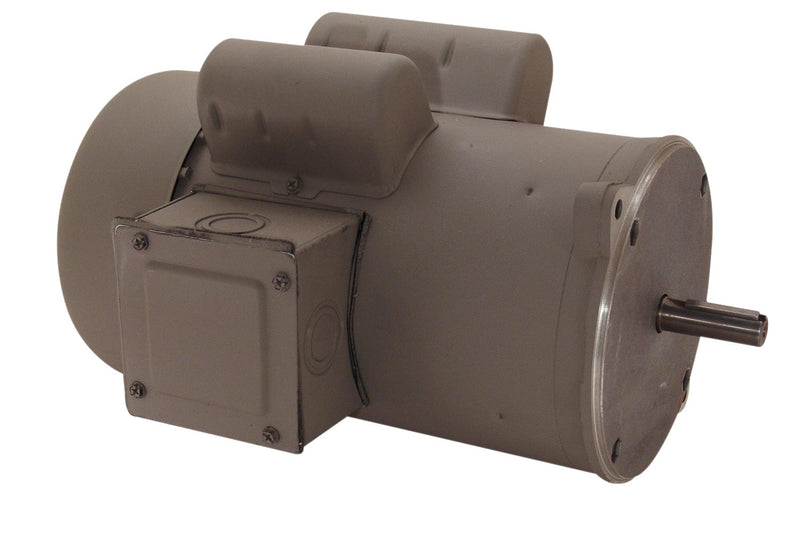

Century AO Smith C340 Augor Drive Motor, 1-1/2 HP, Cap Start, 1725 RPM, 115, 230V, 56N Frame

CenturySKU: c2091445
MPN : C340
Weight : 15.0 lb
filler

Price:
$428.23 $522.23

Availability : Usually Ships in 3-5 Business Days
  • Features: 40 degree C ambient, "N" flange bracket, Torque switch and governor, Double sealed ball bearing

Item: Farm Duty Motor, Motor Type: Capacitor-Start, HP: 1-1/2, Nameplate RPM: 1725, Voltage: 115/230, Frame: 56N, Enclosure: Totally Enclosed, Rotation: CW/CCW, Hz: 60, Phase: 1, Speeds: 1, Service Factor: 1, Insulation Class: B, Bearings: Ball, Base: None, Shaft Type: Key, Shaft Number: 1, Shaft Length: 1.875", Shaft Dia.: 0.625", "C" Dim: 14.5, Protection: Manual, Thermal Protection: Yes, Cooling: Fan Cooled.

ItemFarm Duty Motor
Motor TypeCapacitor-Start
HP1-1/2
Nameplate RPM1725
Voltage115/230
Frame56N
EnclosureTotally Enclosed
RotationCW/CCW
Hz60
Phase1
Speeds1
Service Factor1
Insulation ClassB
BearingsBall
BaseNone
Shaft TypeKey
Shaft Number1
Shaft Length1.875"
Shaft Dia.0.625"
"C" Dim14.5
ProtectionManual
Thermal ProtectionYes
CoolingFan Cooled
