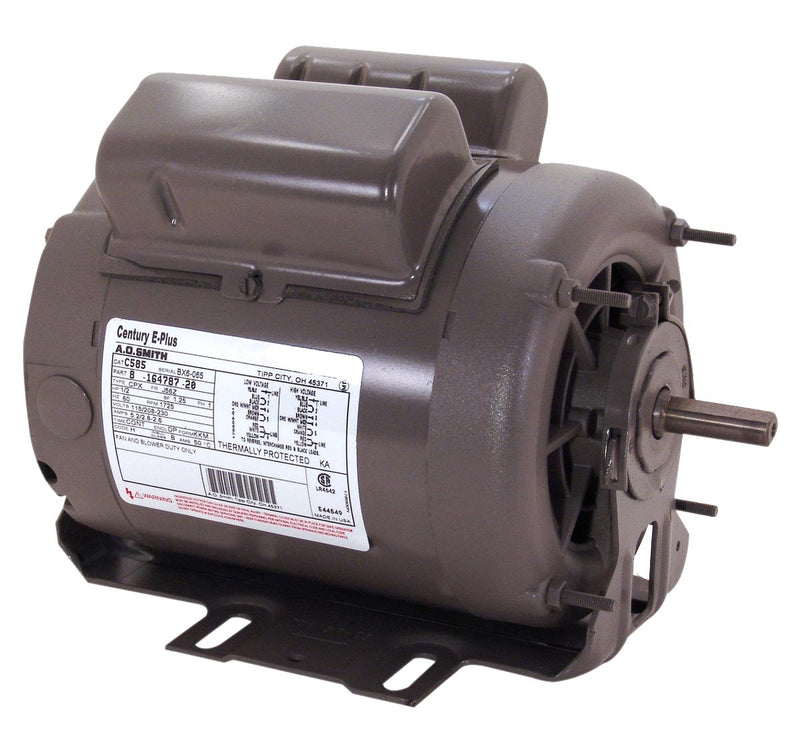

Century AO Smith C586 Direct Drive Motor, 3/4 HP, Cap. Start Run, 1725 RPM, 115, 208-230V, 56 Frame

CenturySKU: c2090803
MPN : C586
Weight : 15.0 lb

filler

Price:
$515.31 $628.43

Availability : Usually Ships in 3-5 Business Days
  • Features: Bearings lubed with Beacon 325 low temp. grease, 50 degree C ambient

Item: Direct Drive Blower Motor, Motor Type: Cap. Start Run, HP: 3/4, Nameplate RPM: 1725, Voltage: 115/208-230, Frame: 56, Enclosure: Drip Proof, Rotation: CW, Hz: 60, Phase: 1, Speeds: 1, Service Factor: 1.25, Bearings: Ball, Base: Resilient, Shaft Type: Key, Shaft Number: 1, Shaft Length: 1.875", Shaft Dia.: 0.625", "C" Dim: 11.44, Protection: Auto, Thermal Protection: Yes, Cooling: Ambient.

ItemDirect Drive Blower Motor
Motor TypeCap. Start Run
HP3/4
Nameplate RPM1725
Voltage115/208-230
Frame56
EnclosureDrip Proof
RotationCW
Hz60
Phase1
Speeds1
Service Factor1.25
BearingsBall
BaseResilient
Shaft TypeKey
Shaft Number1
Shaft Length1.875"
Shaft Dia.0.625"
"C" Dim11.44
ProtectionAuto
Thermal ProtectionYes
CoolingAmbient
