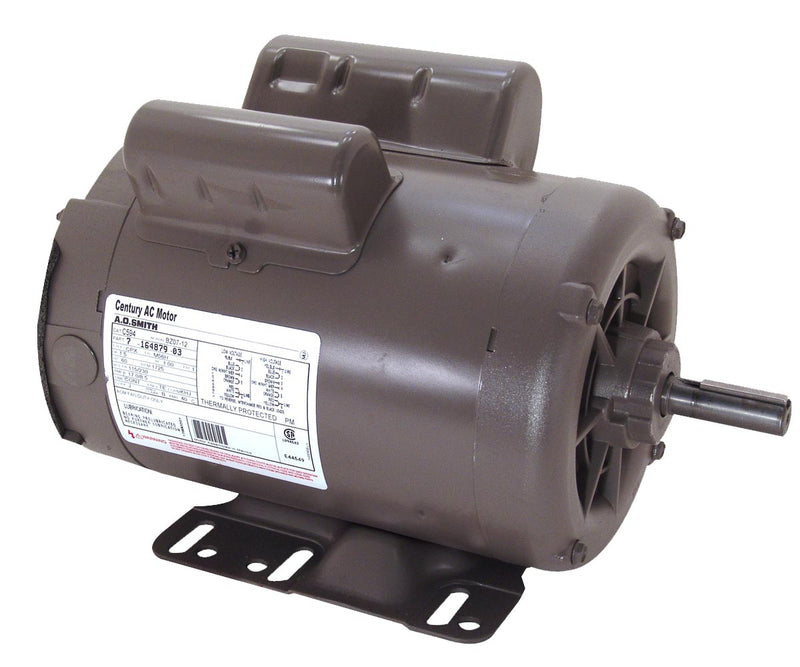

Century AO Smith C594 Direct Drive Barn Fan Motor, 1-1/2 HP, Cap Start Run, 1800 RPM, 115, 230V, 56H Frame, Replaced w/ Century C594V1

CenturySKU: c2090797
MPN : C594
Weight : 15.0 lb
filler

Price:
$422.14 $514.80

Availability : Usually Ships in 3-5 Business Days
  • Features: 40 degree C ambient, Cow Cooler

Item: Direct Drive Blower Motor, Motor Type: Capacitor-Start/Capacitor-Run, HP: 1-1/2, Nameplate RPM: 1800, Voltage: 115/230, Frame: 56H, Enclosure: Totally Enclosed, Rotation: CW/CCW, Hz: 60, Phase: 1, Speeds: 1, Service Factor: 1, Insulation Class: B, Bearings: Ball, Base: Rigid, Shaft Type: Key, Shaft Number: 1, Shaft Length: 1.875", Shaft Height: 3.5", Shaft Dia.: 0.625", "C" Dim: 12.69, Protection: Manual, Thermal Protection: Yes, Cooling: Air Over.

ItemDirect Drive Blower Motor
Motor TypeCapacitor-Start/Capacitor-Run
HP1-1/2
Nameplate RPM1800
Voltage115/230
Frame56H
EnclosureTotally Enclosed
RotationCW/CCW
Hz60
Phase1
Speeds1
Service Factor1
Insulation ClassB
BearingsBall
BaseRigid
Shaft TypeKey
Shaft Number1
Shaft Length1.875"
Shaft Height3.5"
Shaft Dia.0.625"
"C" Dim12.69
ProtectionManual
Thermal ProtectionYes
CoolingAir Over
