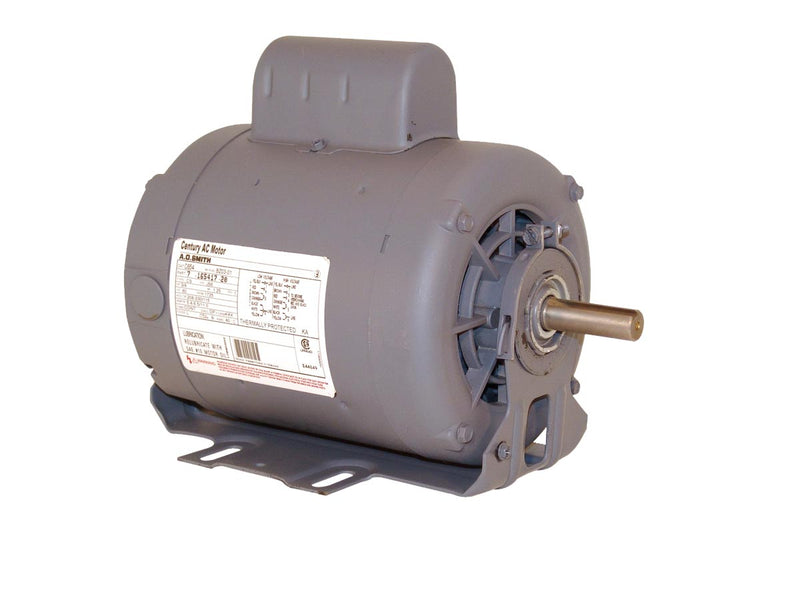

Century AO Smith C607 Cap Start Resilient Motor, 1/2 HP, 1725 RPM, 115, 208-230V, 56 Frame, Replaced w/ Century C607V1

CenturySKU: c2091168
MPN : C607
Weight : 15.0 lb
filler

Price:
$313.31 $382.09

Availability : Usually Ships in 3-5 Business Days
  • Features: 40 degree C ambient

Item: Belt Drive Motor, Motor Type: Capacitor-Start, HP: 1/2, Nameplate RPM: 1725, Voltage: 115/208-230, Frame: 56, Enclosure: Drip Proof, Rotation: CW/CCW, Hz: 60, Phase: 1, Speeds: 1, Service Factor: 1.25, Insulation Class: B, Bearings: Sleeve, Base: Resilient, Shaft Type: Key, Shaft Number: 1, Shaft Length: 1.875", Shaft Height: 3.5", Shaft Dia.: 0.625", "C" Dim: 11.1, Protection: Auto, Thermal Protection: Yes, Cooling: Ambient.

ItemBelt Drive Motor
Motor TypeCapacitor-Start
HP1/2
Nameplate RPM1725
Voltage115/208-230
Frame56
EnclosureDrip Proof
RotationCW/CCW
Hz60
Phase1
Speeds1
Service Factor1.25
Insulation ClassB
BearingsSleeve
BaseResilient
Shaft TypeKey
Shaft Number1
Shaft Length1.875"
Shaft Height3.5"
Shaft Dia.0.625"
"C" Dim11.1
ProtectionAuto
Thermal ProtectionYes
CoolingAmbient
