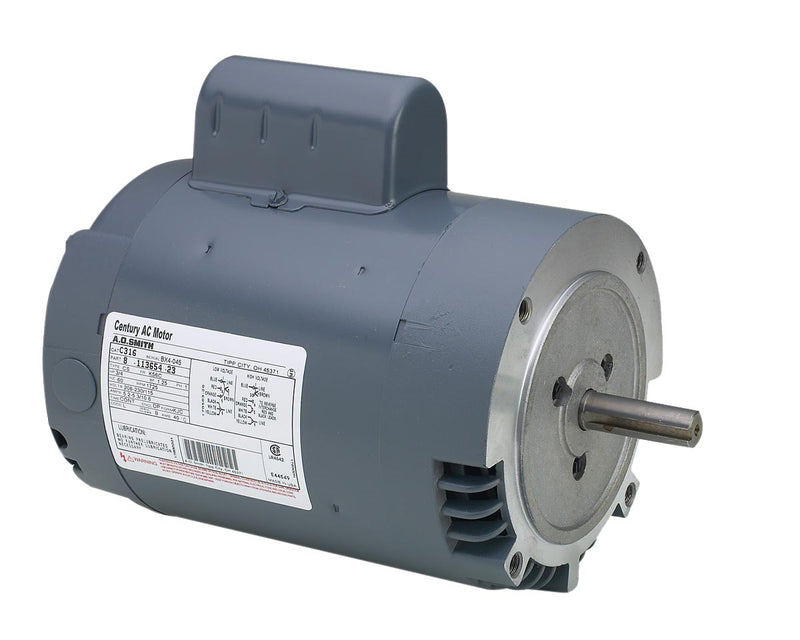

Century AO Smith C635 Cap Start C-Face Motor, 1/2 HP, 1725 RPM, 115, 208-230V, 56C Frame, Replaced w/ Century C635ES

CenturySKU: c2091203
MPN : C635
Weight : 15.0 lb
filler

Price:
$403.53 $492.11

Availability : Usually Ships in 3-5 Business Days
  • Features: 40 degree C ambient

Item: General Purpose AC Motor, Motor Type: Capacitor-Start, HP: 1/2, Nameplate RPM: 1725, Voltage: 115/208-230, Frame: 56C, Enclosure: Drip Proof, Rotation: CW/CCW, Hz: 60, Phase: 1, Speeds: 1, Service Factor: 1.25, Bearings: Ball, Base: None, Shaft Type: Key, Shaft Number: 1, Shaft Length: 2.06", Shaft Dia.: 0.625", "C" Dim: 11.1, Protection: Auto, Thermal Protection: Yes, Cooling: Ambient.

ItemGeneral Purpose AC Motor
Motor TypeCapacitor-Start
HP1/2
Nameplate RPM1725
Voltage115/208-230
Frame56C
EnclosureDrip Proof
RotationCW/CCW
Hz60
Phase1
Speeds1
Service Factor1.25
BearingsBall
BaseNone
Shaft TypeKey
Shaft Number1
Shaft Length2.06"
Shaft Dia.0.625"
"C" Dim11.1
ProtectionAuto
Thermal ProtectionYes
CoolingAmbient
