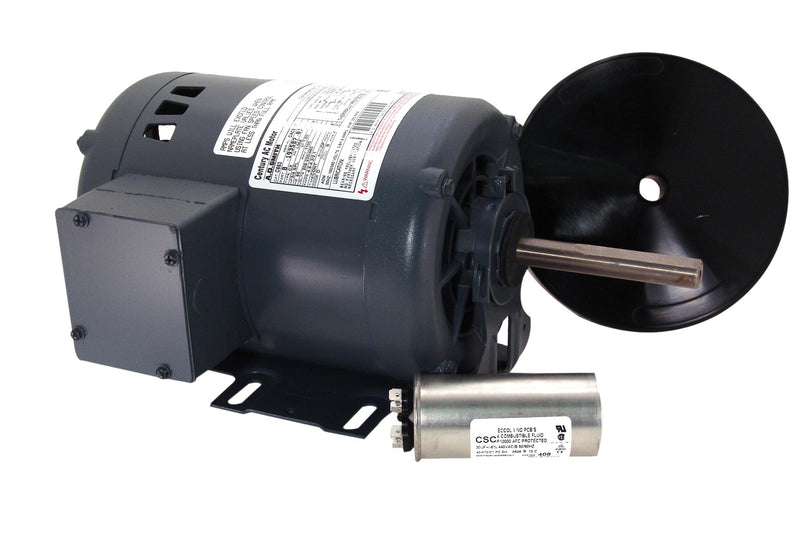

Century AO Smith C663 Condenser Motor, 3/4 HP, PSC, 1100 RPM, 208-230, 460V, 56Z Frame

CenturySKU: c2090911
MPN : C663
Weight : 15.0 lb
filler

Price:
$832.84 $1,015.66

Availability : Usually Ships in 3-5 Business Days
  • Features: 60 degree C ambient, Includes capacitor, Open lead end only, Includes rain shield

Item: Condenser Fan Motor, Motor Type: PSC, HP: 3/4, Nameplate RPM: 1100, Voltage: 208-230/460, Frame: 56Z, Enclosure: Open, Rotation: CW, Hz: 60, Phase: 1, Speeds: 1, Bearings: Ball, Base: Resilient, Shaft Type: Flat, Shaft Number: 1, Shaft Length: 4.57", Shaft Height: 3.5", Shaft Dia.: 0.625", Thermal Protection: Yes, Cooling: Air Over, Capacitor: Included.

ItemCondenser Fan Motor
Motor TypePSC
HP3/4
Nameplate RPM1100
Voltage208-230/460
Frame56Z
EnclosureOpen
RotationCW
Hz60
Phase1
Speeds1
BearingsBall
BaseResilient
Shaft TypeFlat
Shaft Number1
Shaft Length4.57"
Shaft Height3.5"
Shaft Dia.0.625"
Thermal ProtectionYes
CoolingAir Over
CapacitorIncluded
