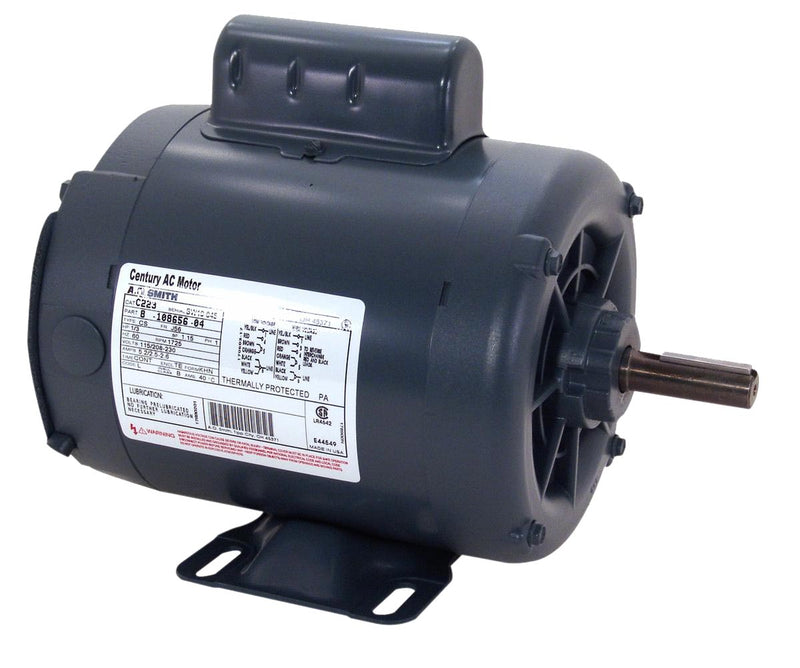

Century AO Smith C682ES Cap Start Rigid Motor, 1 HP, 1725 RPM, 115, 208-230V, 56 Frame

CenturySKU: c2091098
MPN : C682
Weight : 15.0 lb

filler

Price:
$473.00 $576.83

Availability : Usually Ships in 3-5 Business Days
  • Features: 40 degree C ambient

Item: Belt Drive Motor, Motor Type: Capacitor-Start, HP: 1, Nameplate RPM: 1725, Voltage: 115/208-230, Frame: 56, Enclosure: Drip Proof, Rotation: CW/CCW, Hz: 60, Phase: 1, Speeds: 1, Service Factor: 1.25, Insulation Class: B, Bearings: Ball, Base: Rigid, Shaft Type: Key, Shaft Number: 1, Shaft Length: 1.875", Shaft Height: 3.5", Shaft Dia.: 0.625", "C" Dim: 11.4, Protection: Auto, Thermal Protection: Yes, Cooling: Ambient.

ItemBelt Drive Motor
Motor TypeCapacitor-Start
HP1
Nameplate RPM1725
Voltage115/208-230
Frame56
EnclosureDrip Proof
RotationCW/CCW
Hz60
Phase1
Speeds1
Service Factor1.25
Insulation ClassB
BearingsBall
BaseRigid
Shaft TypeKey
Shaft Number1
Shaft Length1.875"
Shaft Height3.5"
Shaft Dia.0.625"
"C" Dim11.4
ProtectionAuto
Thermal ProtectionYes
CoolingAmbient
