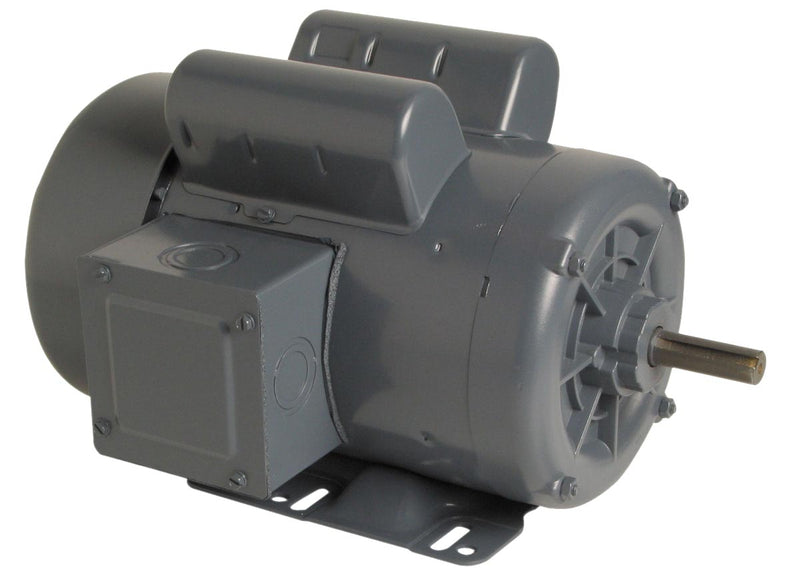

Century AO Smith C686 Cap Start Rigid Motor, 1-1/2 HP, Cap Start Run, 1725 RPM, 115, 208-230V, 56H Frame, Replaced w/ Century C686V1

CenturySKU: c2091138
MPN : C686
Weight : 15.0 lb

filler

Price:
$683.24 $833.22

Availability : Usually Ships in 3-5 Business Days
  • Features: 40 degree C ambient, Capacitor start & run

Item: Belt Drive Motor, Motor Type: Capacitor-Start/Capacitor-Run, HP: 1-1/2, Nameplate RPM: 1725, Voltage: 115/208-230, Frame: 56H, Enclosure: Totally Enclosed, Rotation: CW/CCW, Hz: 60, Phase: 1, Speeds: 1, Service Factor: 1.15, Insulation Class: B, Bearings: Ball, Base: Rigid, Shaft Type: Key, Shaft Number: 1, Shaft Length: 1.875", Shaft Height: 3.5", Shaft Dia.: 0.625", "C" Dim: 13.9, Protection: Auto, Thermal Protection: Yes, Cooling: Fan Cooled.

ItemBelt Drive Motor
Motor TypeCapacitor-Start/Capacitor-Run
HP1-1/2
Nameplate RPM1725
Voltage115/208-230
Frame56H
EnclosureTotally Enclosed
RotationCW/CCW
Hz60
Phase1
Speeds1
Service Factor1.15
Insulation ClassB
BearingsBall
BaseRigid
Shaft TypeKey
Shaft Number1
Shaft Length1.875"
Shaft Height3.5"
Shaft Dia.0.625"
"C" Dim13.9
ProtectionAuto
Thermal ProtectionYes
CoolingFan Cooled
