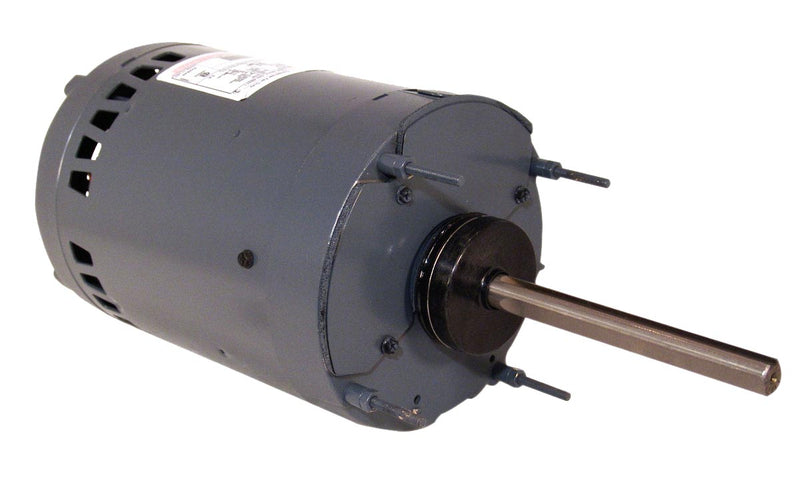

Century AO Smith C770V1 Condenser Motor, 1 HP, PSC, 1075 RPM, 200-230, 460V

CenturySKU: c2090892
MPN : C770V1
Weight : 15.0 lb

filler

Price:
$473.97 $578.01

Availability : Usually Ships in 3-5 Business Days
  • Features: Quick connect design, Keyway and flat shaft, 1" extended thru-bolt minimum, Includes resilient mounting rings

Item: Condenser Fan Motor, Motor Type: PSC, HP: 1, Nameplate RPM: 1075, Voltage: 200-230/460, Enclosure: Open, Rotation: CW/CCW, Hz: 60, Phase: 1, Speeds: 1, Bearings: Ball, Shaft Number: 1, Shaft Length: 6", Shaft Dia.: 0.625", Ring to Ring Center: 10.31", Thermal Protection: Yes, Cooling: Air Over, Capacitor: 25M 370V.

ItemCondenser Fan Motor
Motor TypePSC
HP1
Nameplate RPM1075
Voltage200-230/460
EnclosureOpen
RotationCW/CCW
Hz60
Phase1
Speeds1
BearingsBall
Shaft Number1
Shaft Length6"
Shaft Dia.0.625"
Ring to Ring Center10.31"
Thermal ProtectionYes
CoolingAir Over
Capacitor25M 370V
