- Features: 40 degree C ambient, 50-60 Hz

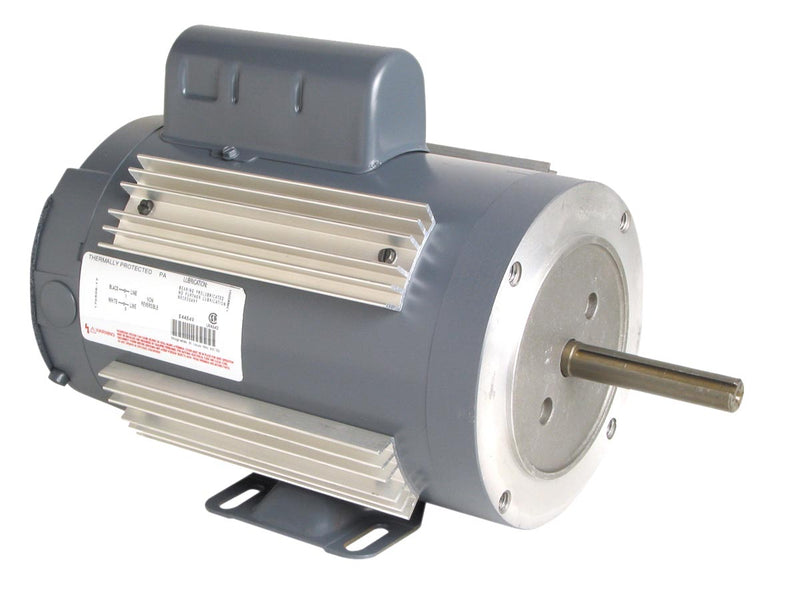

Item: Direct Drive Blower Motor, Motor Type: PSC, HP: 1, Nameplate RPM: 900, Voltage: 230, Frame: 56CZ, Enclosure: Totally Enclosed, Rotation: CW, Hz: 50, 60, Phase: 1, Speeds: 1, Service Factor: 1, Insulation Class: B, Bearings: Ball, Base: None, Shaft Type: Key, Shaft Number: 1, Shaft Length: 3.25", Shaft Dia.: 0.625", "C" Dim: 14.22, Protection: Auto, Thermal Protection: Yes, Cooling: Air Over.
| Item | Direct Drive Blower Motor |
| Motor Type | PSC |
| HP | 1 |
| Nameplate RPM | 900 |
| Voltage | 230 |
| Frame | 56CZ |
| Enclosure | Totally Enclosed |
| Rotation | CW |
| Hz | 50, 60 |
| Phase | 1 |
| Speeds | 1 |
| Service Factor | 1 |
| Insulation Class | B |
| Bearings | Ball |
| Base | None |
| Shaft Type | Key |
| Shaft Number | 1 |
| Shaft Length | 3.25" |
| Shaft Dia. | 0.625" |
| "C" Dim | 14.22 |
| Protection | Auto |
| Thermal Protection | Yes |
| Cooling | Air Over |
