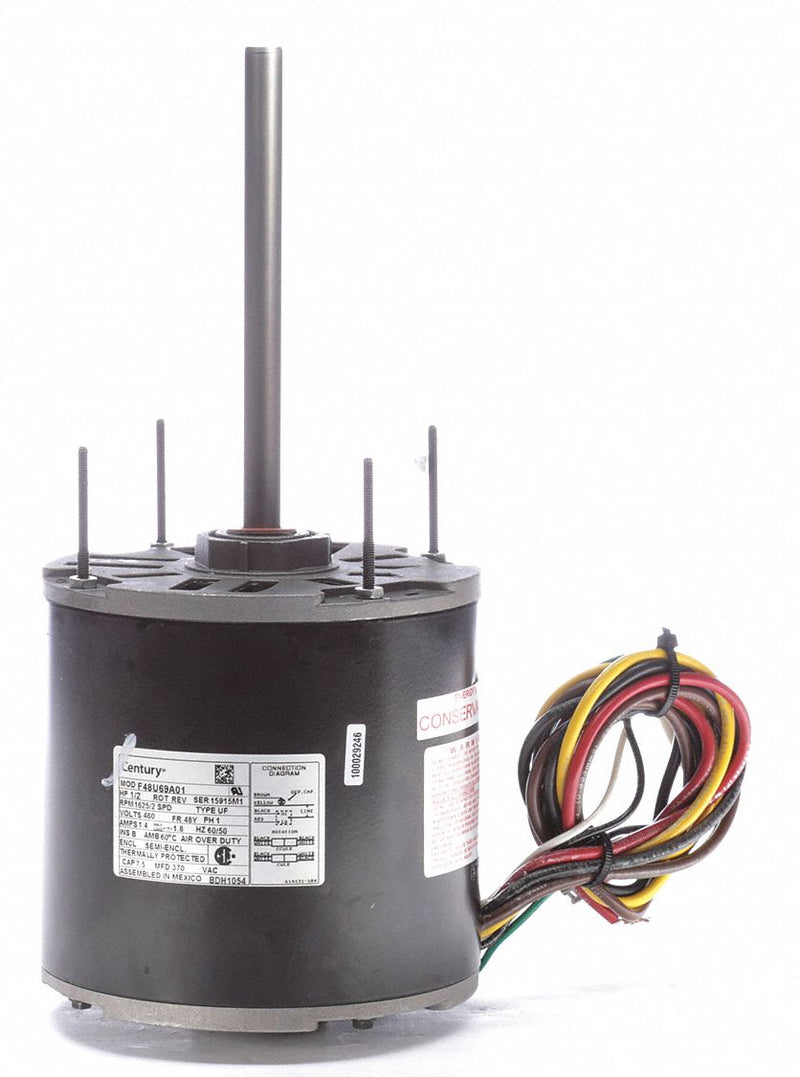

Commercial-duty motor features higher starting torque, cooler running temperature, and reversing plug. Open air-over motor has totally enclosed shaft endshield and shell. Opposite endshield is open. Shaft up/down motor has both endshields totally enclosed with removable drain plugs. Can be mounted vertically or horizontally. Suitable for outdoor air conditioner condensers and refrigeration condensers. Can also be used on heat pumps.
| Item | Condenser Fan Motor |
| Motor Design | Permanent Split Capacitor |
| Phase | 1 |
| HP | 1/2 |
| No. of Speeds | 2 |
| Voltage | 460 |
| Motor Shaft Rotation | CW/CCW |
| Frame | 48Y |
| Motor Enclosure Design | Open Air-Over |
| Motor Mounting Type | Stud |
| Motor Mounting Position | Horizontal |
| Shaft Dia. | 1/2 in |
| Shaft Length | 6 in |
| Motor Thermal Protection | Auto |
| Max. Ambient Temp. | 60 Degrees C |
| Nameplate RPM | 1625 |
| Motor Application | HVAC/R |
| Motor Sub Application | Condenser Fan |
| Hz | 60/50 |
| Full Load Amps | 1.4 |
| Ins. Class | B |
| Motor Service Factor | 1 |
| Motor Bearings | Ball |
| Overall Length | 12 1/4 in |
| Length Less Shaft | 6 1/4 in |
| Body Dia. | 5 5/8 in |
| Stud Quantity | 4 |
| Mounting Stud Pattern | 3-5/8 in x 3-5/8 in |
| Stud Size | 8-32 x 1-5/8 in |
| Nominal Efficiency | 64 % |
| Lead Length | 27 in |
| Motor Shaft Design | Flat |
| Features | Auto Protector, Electrically Reversible, Energy Efficient |
| Duty | Continuous |
| Capacitor Required | Included |
| Standards | CSA Certified (LR43341), UL Recognized (E46412) |
