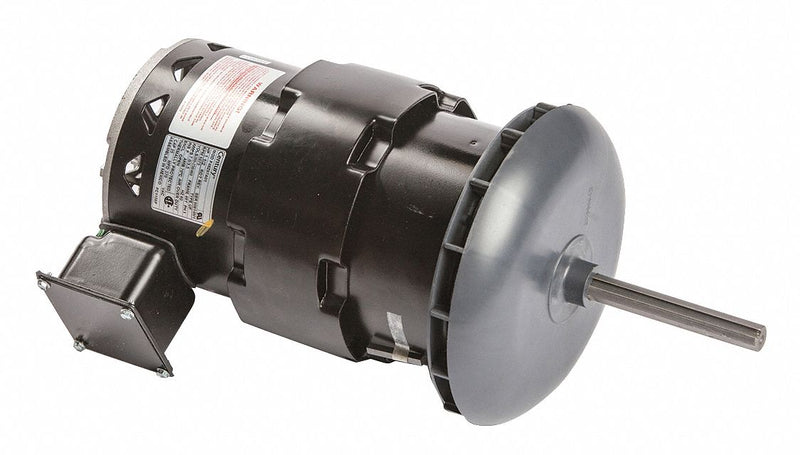

OEM PSC Fan Canopy Condenser Fan Motors,Frame: 48Y (5-5/8" body dia.) Enclosure: open air-over Mounting: band Service factor: 1.0 Insulation: Class F Max. ambient: 70C Thermal protection: auto Bearings: ball Rotation: CW/CCW Speeds: 1 Duty: continuous air-over,Provide a high-ambient alternative to OEM motors in commercial condenser fan applications. Energy-efficient design with ultrahigh torque ensures performance in elevated temperatures. High-efficiency rating increases motor life. Vertical shaft-up only with reversible design supports application flexibility.,UL Recognized and CSA Certified.
| Item | Condenser Fan Motor |
| Motor Design | Permanent Split Capacitor |
| Phase | 1 |
| HP | 1-1/2 |
| No. of Speeds | 1 |
| Voltage | 200-230/460 |
| Motor Shaft Rotation | CW/CCW |
| Frame | 48Y |
| Motor Enclosure Design | Open Air-Over |
| Motor Mounting Type | Band |
| Motor Mounting Position | Vertical Shaft Up |
| Shaft Dia. | 5/8 in |
| Shaft Length | 4 11/16 in |
| Motor Thermal Protection | Auto |
| Max. Ambient Temp. | 70 Degrees C |
| Nameplate RPM | 1075 |
| Motor Application | HVAC/R |
| Motor Sub Application | Condenser Fan |
| Hz | 60 |
| Full Load Amps | 7/3.5 |
| Ins. Class | F |
| Motor Service Factor | 1 |
| Motor Bearings | Ball |
| Overall Length | 16 in |
| Length Less Shaft | 11 5/16 in |
| Body Dia. | 5 5/8 in |
| Lead Length | 5 to 7 in |
| Motor Shaft Design | Keyed with Single Flat |
| Features | Auto Protector, Energy Efficient, High Thrust Capacity, Reversible |
| Duty | Continuous |
| Capacitor Required | 2MDW3 |
| Standards | CSA Certified (LR43341), UL Recognized (E46412) |
