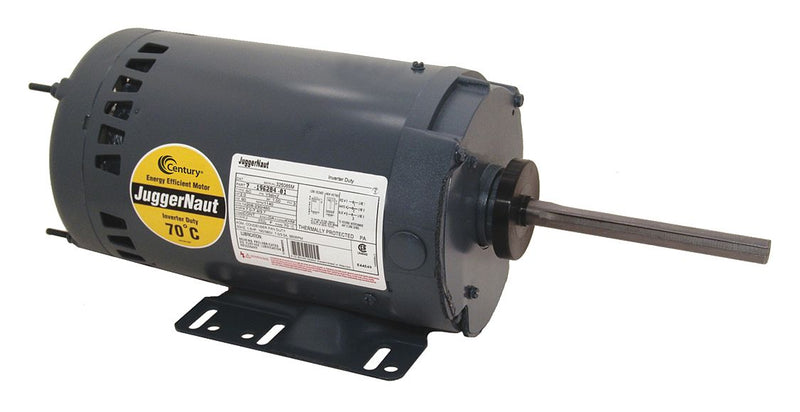

Condenser Fan Motor, Motor Application HVAC/R, Motor Sub Application Condenser Fan, Motor Type 3-Phase, Enclosure Open Air-Over, HP 1-1/2, Number of Speeds 1, Nameplate RPM 1140, Frame 56HZ, Voltage 208-230/460, Hz 60, Phase 3, Full Load Amps 5.8-5.8/2.9, Mounting Base/Stud/Band, Thermal Protection Auto, Insulation Class F, Service Factor 1.0, Bearings Ball, Max. Ambient Temp. 70 Degrees C, Rotation CW/CCW, Overall Length 17-9/16", Length Less Shaft 11-1/2", Shaft Dia. 5/8", Shaft Length 6-1/16", Body Dia. 6-1/2", Bolt Circle Dia. 5-7/8", Stud Quantity 4, Stud Pattern 4-1/8 x 4-1/8", Stud Size 10-32", Shaft Type Keyed with Single Flat, Shaft Orientation Horizontal or Up, Features Inverter Duty, Removable Rigid Base, Voltage Change Module, Large Water Slinger, Positioning Lugs for Easy Belly Band Mounting, Quick Connect Design, Duty Continuous Air-Over, Application Condenser Fan Motor, RPM Range 1101-1200, Standards UL Recognized (E44549), CSA Certified (LR4642)
