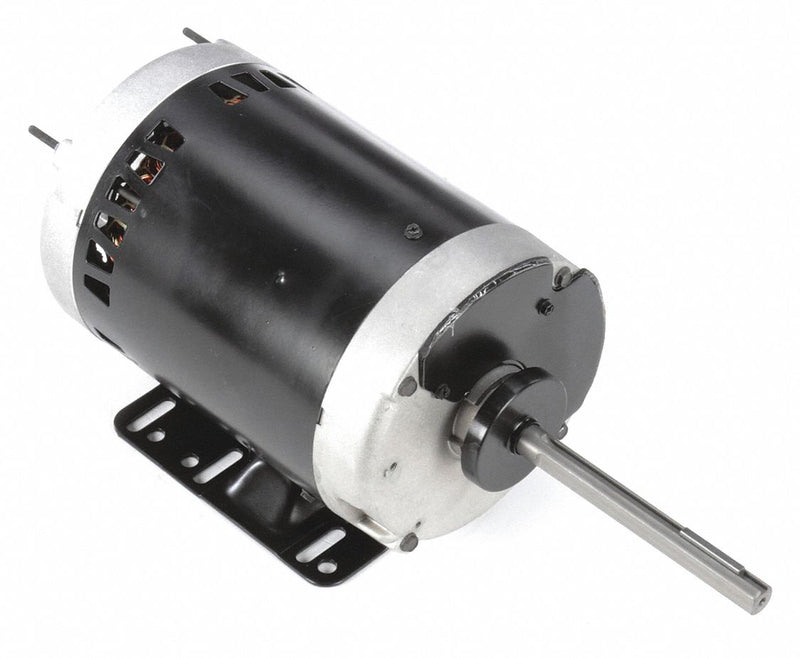

High-efficiency motor has cooler running temperature to ensure longer life performance. For 5-ton and larger commercial outdoor condensers.
| Item | Condenser Fan Motor |
| Motor Design | 3-Phase |
| Phase | 3 |
| HP | 1-1/2 |
| No. of Speeds | 1 |
| Voltage | 200-230/460 |
| Motor Shaft Rotation | CW/CCW |
| Frame | 56Y |
| Motor Enclosure Design | Open Air-Over |
| Motor Mounting Type | Rigid Base |
| Motor Mounting Position | Vertical Shaft Up |
| Shaft Dia. | 5/8 in |
| Shaft Length | 6 in |
| Motor Thermal Protection | Auto |
| Max. Ambient Temp. | 60 Degrees C |
| Nameplate RPM | 1140 |
| Motor Application | HVAC/R |
| Motor Sub Application | Condenser Fan |
| Hz | 60 |
| Full Load Amps | 5.1-5/2.5 |
| Ins. Class | B |
| Motor Service Factor | 1 |
| Motor Bearings | Ball |
| Overall Length | 17 3/8 in |
| Length Less Shaft | 11 5/16 in |
| Body Dia. | 6 1/2 in |
| Bolt Circle Dia. | 5 13/16 in |
| Stud Quantity | 4 |
| Mounting Stud Pattern | 4-1/8 in x 4-1/8 in |
| Stud Size | #10-32 NF-2A x 1 in |
| Nominal Efficiency | 80 % |
| Motor Shaft Design | Keyed with Single Flat |
| Features | Auto Protector, Base Mounted, Reversible |
| Duty | Continuous |
| Includes | Water Slinger on Shaft |
| Standards | CSA Certified, UL Recognized |
