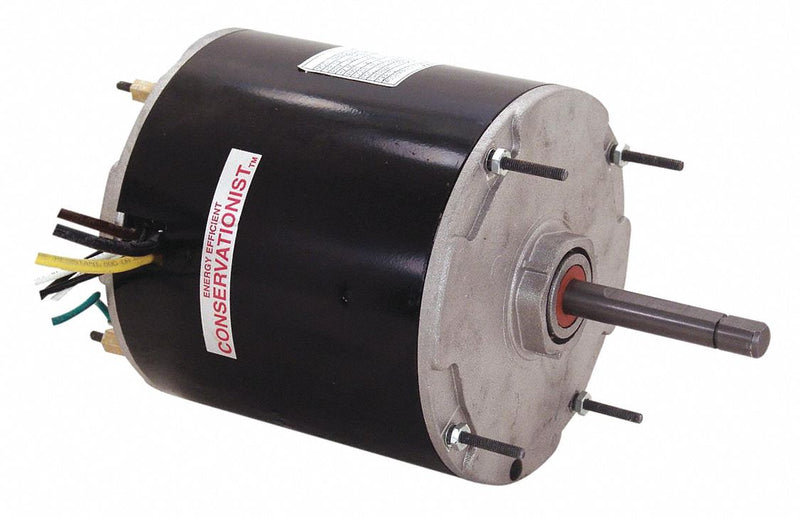

Use as an OEM replacement motor in Carrier/BDP brand fans and blowers.
| OEM Replacement Brand | Carrier/BDP |
| Item | Condenser Fan Motor |
| Motor Design | Permanent Split Capacitor |
| Phase | 1 |
| HP | 1/2 |
| No. of Speeds | 1 |
| Voltage | 460 |
| Motor Shaft Rotation | CW/CCW |
| Frame | 48Y |
| Motor Enclosure Design | Totally Enclosed Air-Over |
| Motor Mounting Type | Stud |
| Shaft Dia. | 1/2 in |
| Shaft Length | 2 7/8 in |
| Number of Shafts | 1 |
| Motor Thermal Protection | Auto |
| Nameplate RPM | 1050 |
| Motor Application | HVAC/R |
| Motor Sub Application | Condenser Fan |
| Full Load Amps | 0.9 |
| Hz | 60 |
| Ins. Class | B |
| Max. Ambient Temp. | 60 Degrees C |
| Motor Service Factor | 1 |
| Motor Bearings | Ball |
| Motor Shaft Design | Flat |
| Body Dia. | 5 5/8 in |
| Length Less Shaft | 6 3/8 in |
| Overall Length | 9 1/4 in |
| Mounting Stud Pattern | 3-5/8 in x 3-5/8 in |
| Stud Size | #8-32 |
| Capacitor Required | 2MDV7 |
| Replacement For | 5KCP39PGH600CS |
| Application | Carrier/BDP |
| Standards | CSA Certified (LR43341), UL Recognized (E46412) |
| Duty | Continuous |
