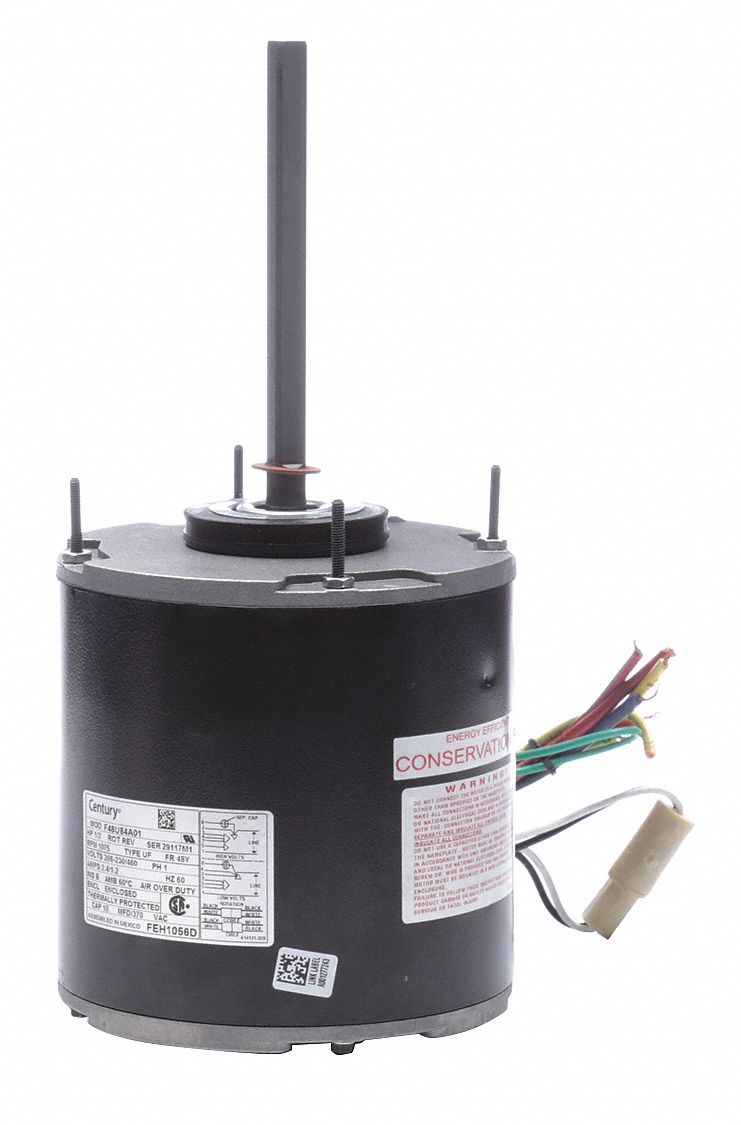

Multipurpose mounting in cradle, band, or by thru-bolt extensions. All-angle shaft position. For 5-ton and larger commercial outdoor condensers. Also used for commercial and industrial coolers, and other shaft-mounted fan and blower equipment.
| Item | Condenser Fan Motor |
| Motor Design | Permanent Split Capacitor |
| Phase | 1 |
| HP | 1/2 |
| No. of Speeds | 1 |
| Voltage | 208-230/460 |
| Motor Shaft Rotation | CW/CCW |
| Frame | 48Y |
| Motor Enclosure Design | Totally Enclosed Air-Over |
| Motor Mounting Type | Stud |
| Motor Mounting Position | All Angle |
| Shaft Dia. | 1/2 in |
| Shaft Length | 5 1/2 in |
| Motor Thermal Protection | Auto |
| Max. Ambient Temp. | 60 Degrees C |
| Nameplate RPM | 1075 |
| Motor Application | HVAC/R |
| Motor Sub Application | Condenser Fan |
| Hz | 60 |
| Full Load Amps | 2.4-2.4/1.2 |
| Ins. Class | B |
| Motor Service Factor | 1 |
| Motor Bearings | Ball |
| Overall Length | 12 1/8 in |
| Length Less Shaft | 6 5/8 in |
| Body Dia. | 5 5/8 in |
| Resilient Ring Dia. | 2 1/2 in |
| Ring to Ring Center | 6 3/16 in |
| Stud Quantity | 4 |
| Mounting Stud Pattern | 3-5/8 in x 3-5/8 in |
| Stud Size | 8-32 x 7/8 in |
| Nominal Efficiency | 67 % |
| Motor Shaft Design | Double-Flat |
| Duty | Continuous |
| Capacitor Required | 2MDV7 |
| Standards | CSA Certified (LR43341/LR4642), UL Recognized (E46412/E44549) |
