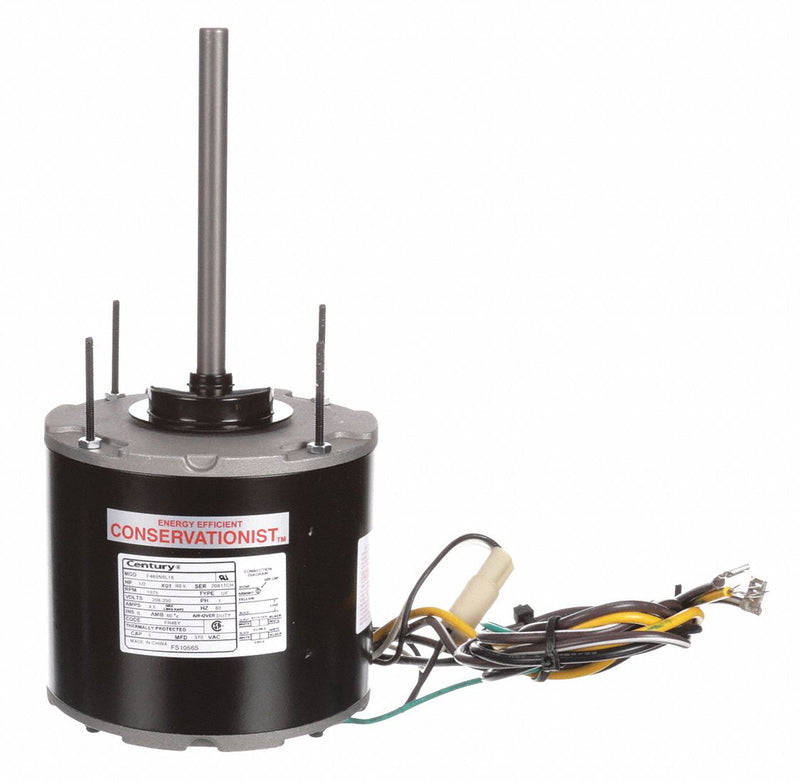

This condenser fan motor features an open air-over enclosure design. Use to operate condenser fans on refrigeration or air conditioning equipment.
| Item | Condenser Fan Motor |
| Motor Design | Permanent Split Capacitor |
| Phase | 1 |
| HP | 1/2 |
| No. of Speeds | 1 |
| Voltage | 208-230 |
| Motor Shaft Rotation | CW/CCW |
| Frame | 48Y |
| Motor Enclosure Design | Open Air-Over |
| Motor Mounting Type | Stud |
| Motor Mounting Position | Vertical Shaft Up |
| Shaft Dia. | 1/2 in |
| Shaft Length | 5 5/8 in |
| Motor Thermal Protection | Auto |
| Max. Ambient Temp. | 60 Degrees C |
| Nameplate RPM | 1075 |
| Motor Application | HVAC/R |
| Motor Sub Application | Condenser Fan |
| Hz | 60 |
| Full Load Amps | 3.2-3.6 |
| Ins. Class | B |
| Motor Service Factor | 1 |
| Motor Bearings | Sleeve |
| Overall Length | 11 7/16 in |
| Length Less Shaft | 5 13/16 in |
| Body Dia. | 5 5/8 in |
| Stud Quantity | 4 |
| Mounting Stud Pattern | 3-5/8 in x 3-5/8 in |
| Stud Size | 8-32 x 1-5/8 in |
| Lead Length | 27 in |
| Motor Shaft Design | Flat |
| Features | Auto Protector, Energy Efficient, Reversible |
| Duty | Continuous |
| Capacitor Required | 2MDV4 |
| Standards | CSA Certified (LR43341/LR4642), UL Recognized (E46412/E44549) |
