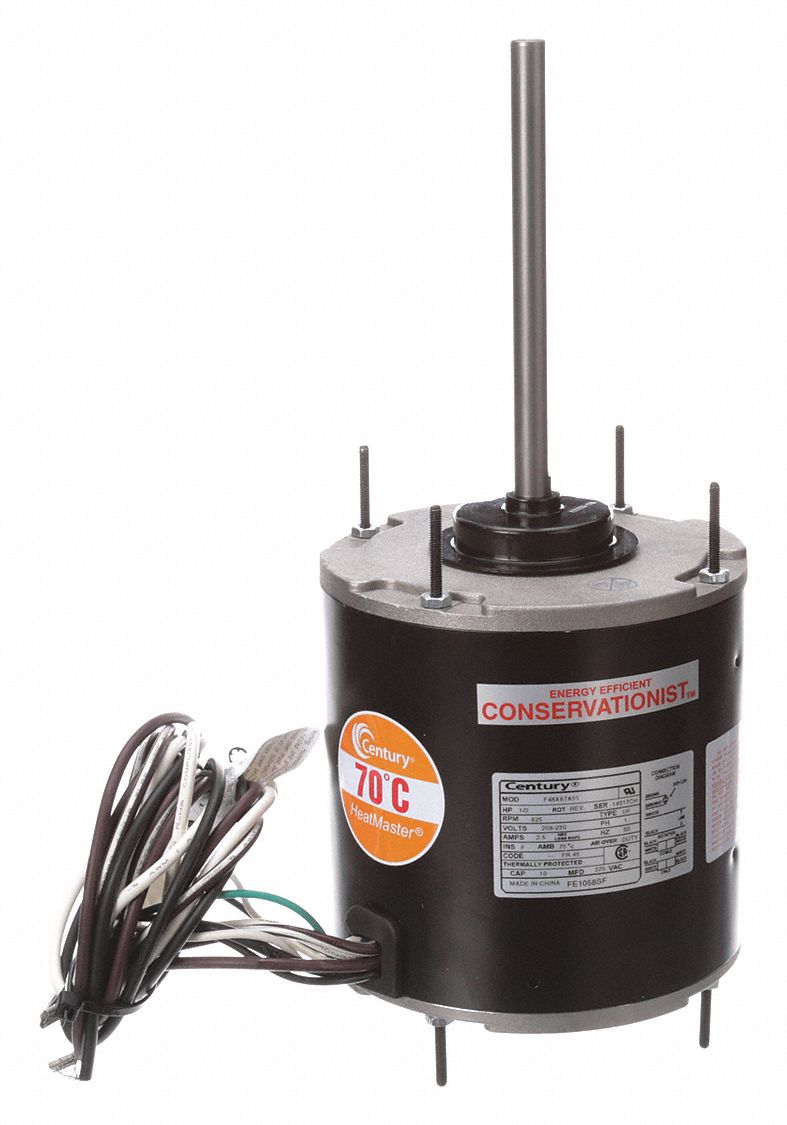

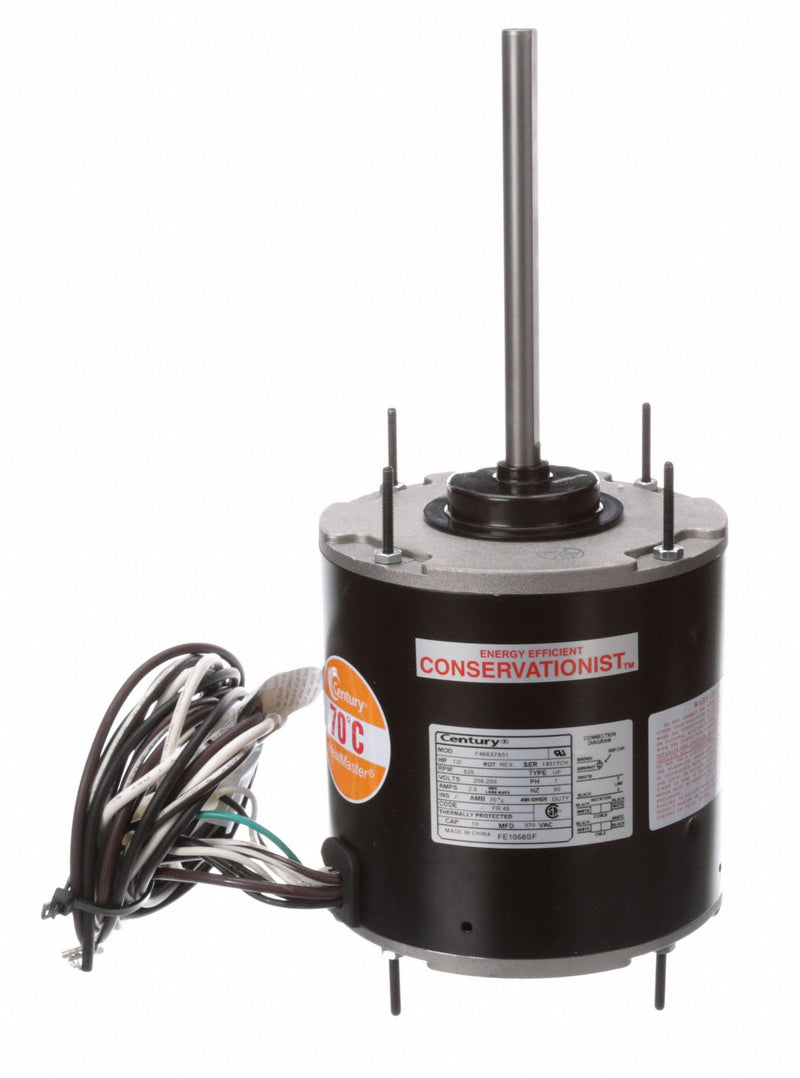

PSC High-Ambient Condenser Fan Motors,Frame: 48Y (5-5/8" body dia.) Service factor: 1.0 Insulation: Class F Max. ambient: 70C Thermal protection: auto Bearings: ball Duty: continuous air-over Rheem mounting holes (screws included),PSC motors are insulated and designed for troublefree operation at full rated load at high temperature. Rotor cores have corrosion-resistant coating to ensure long motor life. Easy-to-remove drain plugs in each end shield. 36" color-coded, high-temp. leads. For outdoor air conditioning and refrigeration condensing units and heat pumps.,UL Recognized and CSA Certified.
| Item | Condenser Fan Motor |
| Motor Design | Permanent Split Capacitor |
| Phase | 1 |
| HP | 1/2 |
| No. of Speeds | 1 |
| Voltage | 208-230 |
| Motor Shaft Rotation | CW/CCW |
| Frame | 48Y |
| Motor Enclosure Design | Totally Enclosed Air-Over |
| Motor Mounting Type | Stud |
| Motor Mounting Position | All Angle |
| Shaft Dia. | 1/2 in |
| Shaft Length | 6 in |
| Motor Thermal Protection | Auto |
| Max. Ambient Temp. | 70 Degrees C |
| Nameplate RPM | 825 |
| Motor Application | HVAC/R |
| Motor Sub Application | Condenser Fan |
| Hz | 60 |
| Full Load Amps | 2.2-2.5 |
| Ins. Class | F |
| Motor Service Factor | 1 |
| Motor Bearings | Ball |
| Overall Length | 12 7/16 in |
| Length Less Shaft | 6 7/16 in |
| Body Dia. | 5 5/8 in |
| Stud Quantity | 4 |
| Mounting Stud Pattern | 3-5/8 in x 3-5/8 in |
| Stud Size | 8-32 |
| Lead Length | 48 in |
| Motor Shaft Design | Double-Flat |
| Features | Energy Efficient, Auto Protector, Extended Through Bolts |
| Duty | Continuous |
| Capacitor Required | 2MDV7 |
| Standards | CSA Certified (LR 43341), UL Recognized (E25022) |
