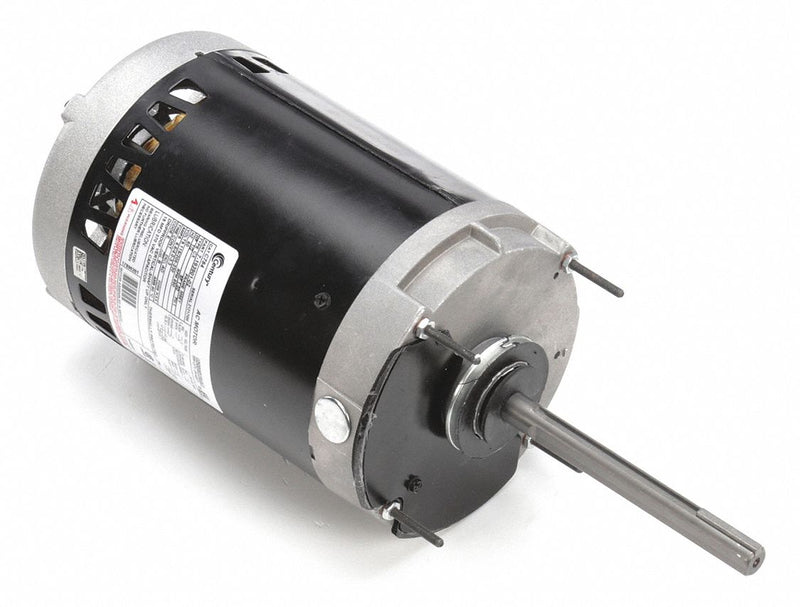

Multipurpose mounting in cradle, band, or by thru-bolt extensions. Mounting vertical shaft position. For 5-ton and larger commercial outdoor condensers. Also used for commercial and industrial coolers, and other shaft-mounted fan and blower equipment.
| Item | Condenser Fan Motor |
| Motor Design | Permanent Split Capacitor |
| Phase | 1 |
| HP | 1/2 |
| No. of Speeds | 1 |
| Voltage | 115/208-230 |
| Motor Shaft Rotation | CW/CCW |
| Frame | 56Y |
| Motor Enclosure Design | Open Air-Over |
| Motor Mounting Type | Stud |
| Motor Mounting Position | Vertical Shaft Up |
| Shaft Dia. | 5/8 in |
| Shaft Length | 6 in |
| Motor Thermal Protection | Auto |
| Max. Ambient Temp. | 60 Degrees C |
| Nameplate RPM | 850 |
| Motor Application | HVAC/R |
| Motor Sub Application | Condenser Fan |
| Hz | 60 |
| Full Load Amps | 6.6/4-3.3 |
| Ins. Class | B |
| Motor Service Factor | 1 |
| Motor Bearings | Ball |
| Overall Length | 16 13/16 in |
| Length Less Shaft | 10 13/16 in |
| Body Dia. | 6 1/2 in |
| Resilient Ring Dia. | 2 1/2 in |
| Ring to Ring Center | 10 13/16 in |
| Stud Quantity | 4 |
| Mounting Stud Pattern | 4-1/8 in x 4-1/8 in |
| Stud Size | 10-32 x 1-1/4 in |
| Nominal Efficiency | 64 % |
| Motor Shaft Design | Keyed with Single Flat |
| Features | Internal Conduit Box for Enclosed Wiring Connection |
| Duty | Continuous |
| Capacitor Required | 2MDV9 |
| Standards | CSA Certified (LR43341/LR4642), UL Recognized (E46412/E44549) |
