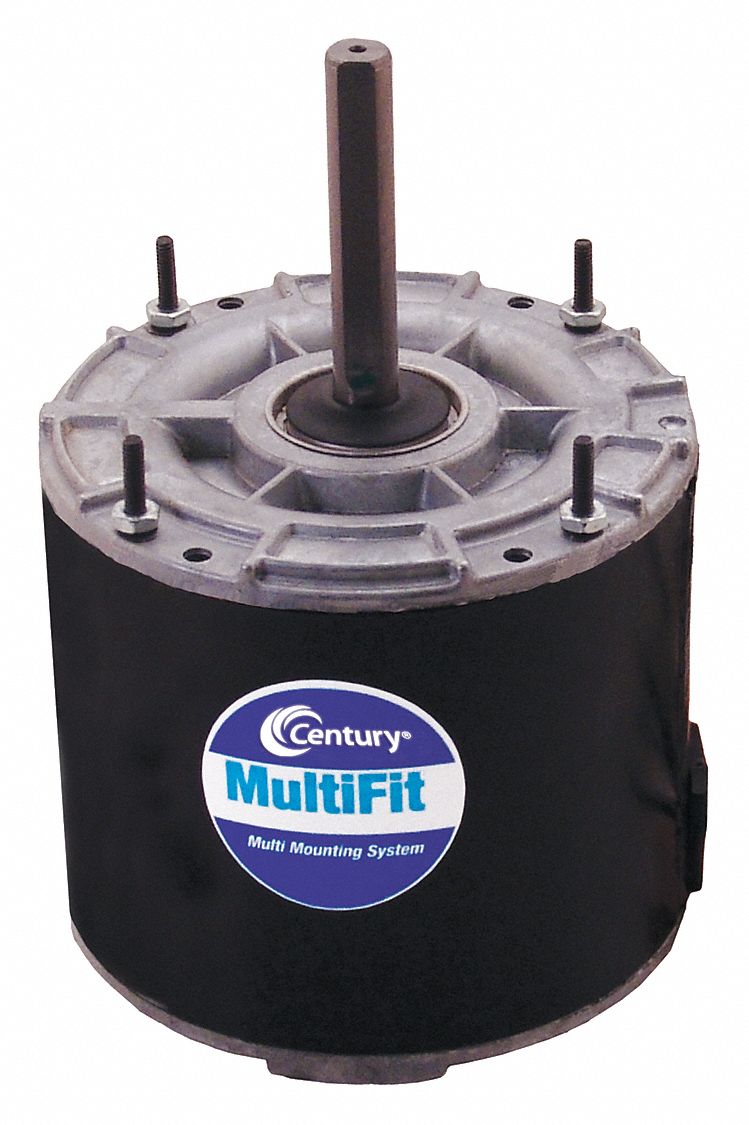

Multi-Mount and Multi-HP PSC Condenser Fan Motors,NEMA frame: 42 (5" body dia.) Enclosure: totally enclosed air-over Mounting: stud/band/hole Service factor: 1.0 Insulation: Class B Max. ambient: 60C Thermal protection: auto Duty: continuous air-over Bearings: ball,Motors replace 4.33", 4.42", and 4.62" mounting bolt circle without having to change capacitors or follow complicated wiring diagrams. Energy-efficient PSC design with high-efficiency rating ensures performance in elevated temperatures.,UL Recognized and CSA Certified.
| Item | Condenser Fan Motor |
| Motor Design | Permanent Split Capacitor |
| Phase | 1 |
| HP | 1/4 to 1/6 |
| No. of Speeds | 1 |
| Voltage | 208-230 |
| Motor Shaft Rotation | CW/CCW |
| Frame | 42 |
| Motor Enclosure Design | Totally Enclosed Air-Over |
| Motor Mounting Type | Stud |
| Motor Mounting Position | All Angle |
| Shaft Dia. | 1/2 in |
| Shaft Length | 3 in |
| Motor Thermal Protection | Auto |
| Max. Ambient Temp. | 60 Degrees C |
| Nameplate RPM | 1625 |
| Motor Application | HVAC/R |
| Motor Sub Application | Condenser Fan |
| Hz | 60 |
| Full Load Amps | 1.6 |
| Ins. Class | B |
| Motor Service Factor | 1 |
| Motor Bearings | Ball |
| Overall Length | 7 1/2 in |
| Length Less Shaft | 4 1/2 in |
| Body Dia. | 5 in |
| Stud Quantity | 4 |
| Stud Size | 8-32 |
| Lead Length | 36 to 39 in |
| Motor Shaft Design | Flat |
| Features | All Angle Mount, Extra Mounting Studs, Multi Mounting System, Nuts, Reversing Plug, Shaft Slinger |
| Duty | Continuous |
| Capacitor Required | 2MDV4 |
| Standards | CSA Certified (LR43341), UL Recognized (E46412) |
