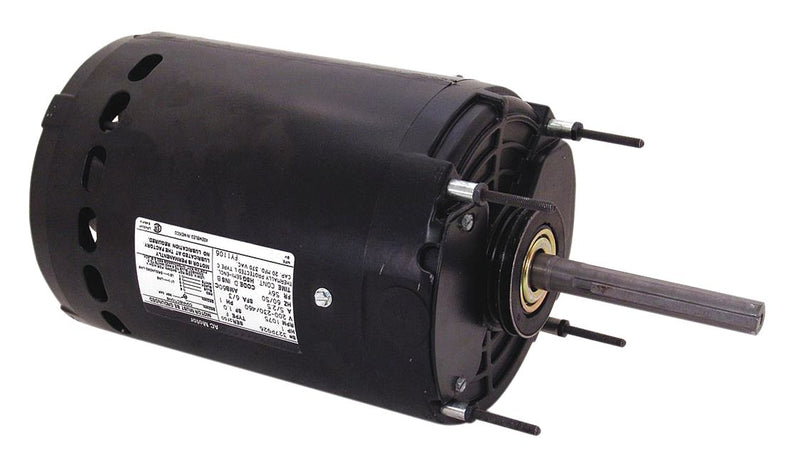

Condenser Fan Motor, Motor Application HVAC/R, Motor Sub Application Condenser Fan, Motor Type PSC, Enclosure Open Air-Over, HP 1, Number of Speeds 1, Nameplate RPM 1075, Frame 56Y, Voltage 200-230/460, Hz 60/50, Phase 1, Full Load Amps 5.0-5.0/2.5, Mounting Ring/Stud, Thermal Protection Auto, Insulation Class B, Service Factor 1.0, Bearings Ball, Max. Ambient Temp. 60 Degrees C, Rotation CW/CCW, Overall Length 16-3/8", Length Less Shaft 10-3/8", Shaft Dia. 5/8", Shaft Length 6", Body Dia. 6-1/2", Resilient Ring Dia. 2-1/2", Ring to Ring Center 9-7/8", Stud Quantity 4, Stud Pattern 4-1/8 x 4-1/8", Stud Size 10-32 x 1-1/4", Nominal Efficiency 0.75, Shaft Type Keyed with Single Flat, Shaft Orientation Up, Features Internal Conduit Box for Enclosed Wiring Connection, Duty Continuous Air-Over, Capacitor Required 2MDW2, RPM Range 1001-1100, Standards UL Recognized (E46412/E44549), CSA Certified (LR43341/LR4642)
