- Cross Reference: GE 3390
- Features: Replaces GE3390, 26" leads, 2-1/4" dia rings with 2-1/2" adapters included, 40 degree C ambient, Capacitor not included

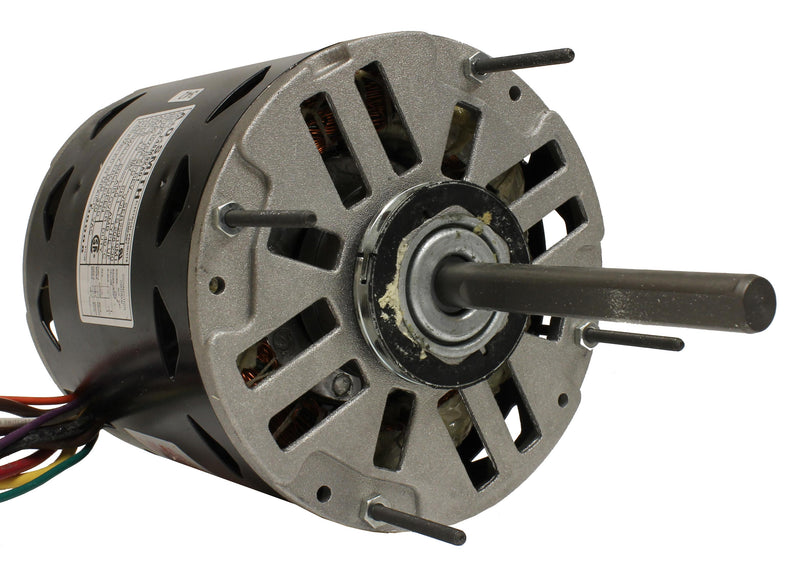

Item: Direct Drive Blower Motor, Motor Type: PSC, HP: 3/4, Nameplate RPM: 1075, Voltage: 208-230, Enclosure: Open, Rotation: CW/CCW, Hz: 60, Phase: 1, Speeds: 2, Bearings: Sleeve, Shaft Number: 1, Shaft Length: 4.5", Shaft Dia.: 0.5", Ring to Ring Center: 6.17", Thermal Protection: Yes, Cooling: Air Over, Capacitor: 10M 370V.
| Item | Direct Drive Blower Motor |
| Motor Type | PSC |
| HP | 3/4 |
| Nameplate RPM | 1075 |
| Voltage | 208-230 |
| Enclosure | Open |
| Rotation | CW/CCW |
| Hz | 60 |
| Phase | 1 |
| Speeds | 2 |
| Bearings | Sleeve |
| Shaft Number | 1 |
| Shaft Length | 4.5" |
| Shaft Dia. | 0.5" |
| Ring to Ring Center | 6.17" |
| Thermal Protection | Yes |
| Cooling | Air Over |
| Capacitor | 10M 370V |
