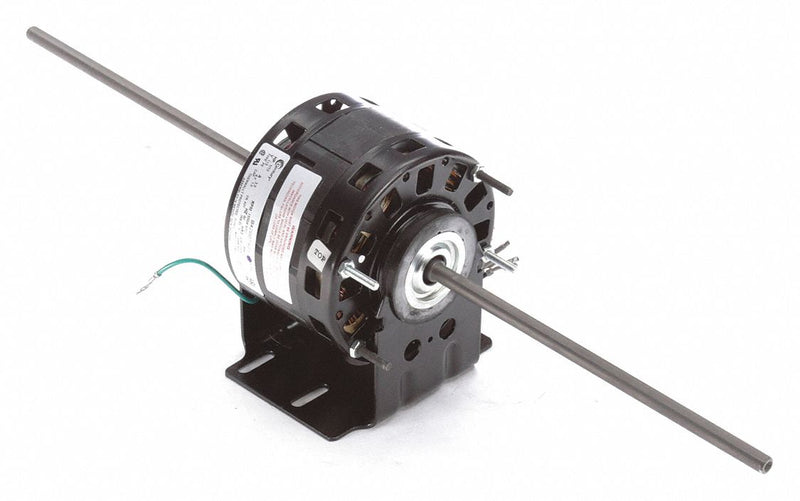

Shaded-Pole Dual-Shaft Motors,Enclosure: open air-over Service factor: 1.0 Max. ambient: 40C Thermal protection: auto Bearings: sleeve Duty: continuous air-over,For room air conditioners, evaporative coolers, remote fan coil units, and other shaft-mounted fan and blower applications.,UL Recognized and CSA Certified.
| Item | Room Air Conditioner Motor |
| Motor Design | Shaded Pole |
| HP | 1/10 |
| No. of Speeds | 4 |
| Voltage | 115 |
| Motor Shaft Rotation | CCWLE |
| Frame | 42Y |
| Motor Enclosure Design | Open Air-Over |
| Motor Mounting Type | Cradle Base |
| Shaft Dia. | 3/8 in |
| Shaft Length | 8 3/4 in |
| Motor Thermal Protection | Auto |
| Nameplate RPM | 1550 |
| Phase | 1 |
| Motor Application | HVAC/R |
| Motor Sub Application | Room Air Conditioner |
| Motor Bearings | Sleeve |
| Capacitor Required | No |
| Ins. Class | A |
| Mounting Stud Pattern | 2-1/4 in x 3-7/8 in |
| Motor Service Factor | 1 |
| Duty | Continuous |
| Hz | 60 |
| Full Load Amps | 3.5 |
| Max. Ambient Temp. | 40 Degrees C |
| Body Dia. | 5 in |
| Length Less Shaft | 4 7/16 in |
| Motor Shaft Design | Flat |
| Stud Size | #10-32 x 13/16 in |
| Ring to Ring Center | 4 1/16 in |
| Resilient Ring Dia. | 2 1/2 in |
| Bolt Circle Dia. | 4 7/16 in |
| Lead Length | 40 in |
| Standards | CSA, UL |
