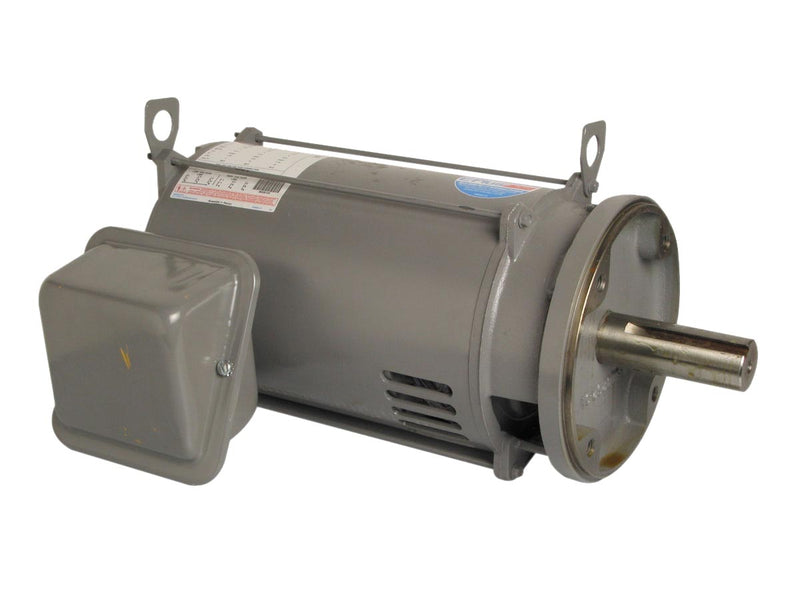

Century AO Smith E2004 3-Phase C-Face Motor, 3 HP, 1800 RPM, 200-230, 460V, 182TC Frame

CenturySKU: c2091635
MPN : E2004
Weight : 15.0 lb
filler

Price:
$582.77 $710.70

Availability : Usually Ships in 3-5 Business Days
  • Features: 40 degree C ambient

Item: General Purpose AC Motor, Motor Type: 3-Phase, HP: 3, Nameplate RPM: 1800, Voltage: 200-230/460, Frame: 182TC, Enclosure: Drip Proof, Rotation: CW/CCW, Hz: 60, Phase: 3, Speeds: 1, Service Factor: 1.15, Insulation Class: B, Bearings: Ball, Base: None, Shaft Type: Key, Shaft Number: 1, Shaft Length: 2.75", Shaft Dia.: 1.125", "C" Dim: 14.38, Protection: None, Thermal Protection: No, Cooling: Ambient, Efficiency: 86.5.

ItemGeneral Purpose AC Motor
Motor Type3-Phase
HP3
Nameplate RPM1800
Voltage200-230/460
Frame182TC
EnclosureDrip Proof
RotationCW/CCW
Hz60
Phase3
Speeds1
Service Factor1.15
Insulation ClassB
BearingsBall
BaseNone
Shaft TypeKey
Shaft Number1
Shaft Length2.75"
Shaft Dia.1.125"
"C" Dim14.38
ProtectionNone
Thermal ProtectionNo
CoolingAmbient
Efficiency86.5
