- Features: 40 degree C ambient

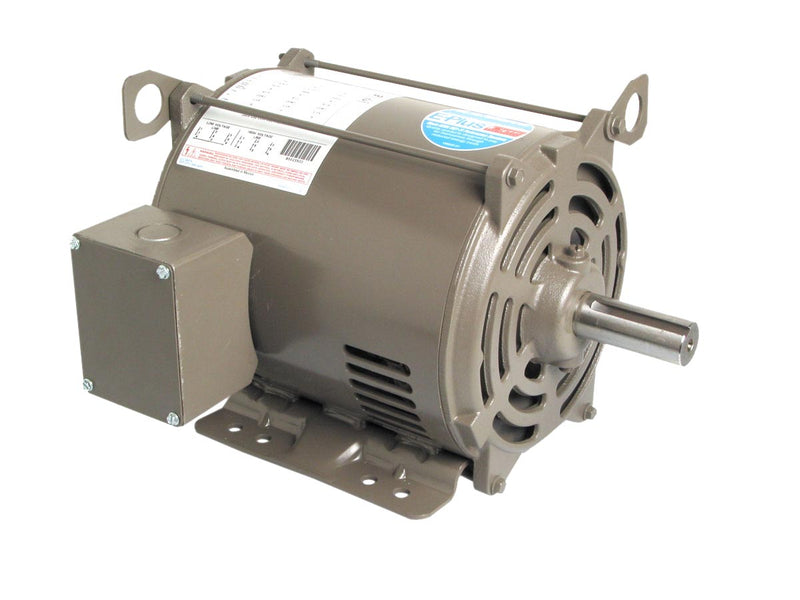

Item: General Purpose AC Motor, Motor Type: 3-Phase, HP: 50, Nameplate RPM: 1800, Voltage: 200, Frame: 326T, Enclosure: Drip Proof, Rotation: CW/CCW, Hz: 60, Phase: 3, Speeds: 1, Service Factor: 1.15, Insulation Class: F, Bearings: Ball, Base: Rigid, Shaft Type: Key, Shaft Number: 1, Shaft Length: 5.5", Shaft Height: 8", Shaft Dia.: 2.125", "C" Dim: 28.3, Protection: None, Thermal Protection: No, Cooling: Ambient, Efficiency: 93.
| Item | General Purpose AC Motor |
| Motor Type | 3-Phase |
| HP | 50 |
| Nameplate RPM | 1800 |
| Voltage | 200 |
| Frame | 326T |
| Enclosure | Drip Proof |
| Rotation | CW/CCW |
| Hz | 60 |
| Phase | 3 |
| Speeds | 1 |
| Service Factor | 1.15 |
| Insulation Class | F |
| Bearings | Ball |
| Base | Rigid |
| Shaft Type | Key |
| Shaft Number | 1 |
| Shaft Length | 5.5" |
| Shaft Height | 8" |
| Shaft Dia. | 2.125" |
| "C" Dim | 28.3 |
| Protection | None |
| Thermal Protection | No |
| Cooling | Ambient |
| Efficiency | 93 |
