Designed for evaporative coolers, pumps, and other devices in high-moisture environments. Moisture-resistant features include: plated hardware and switch parts, fungus treatment, and double-dip varnish.

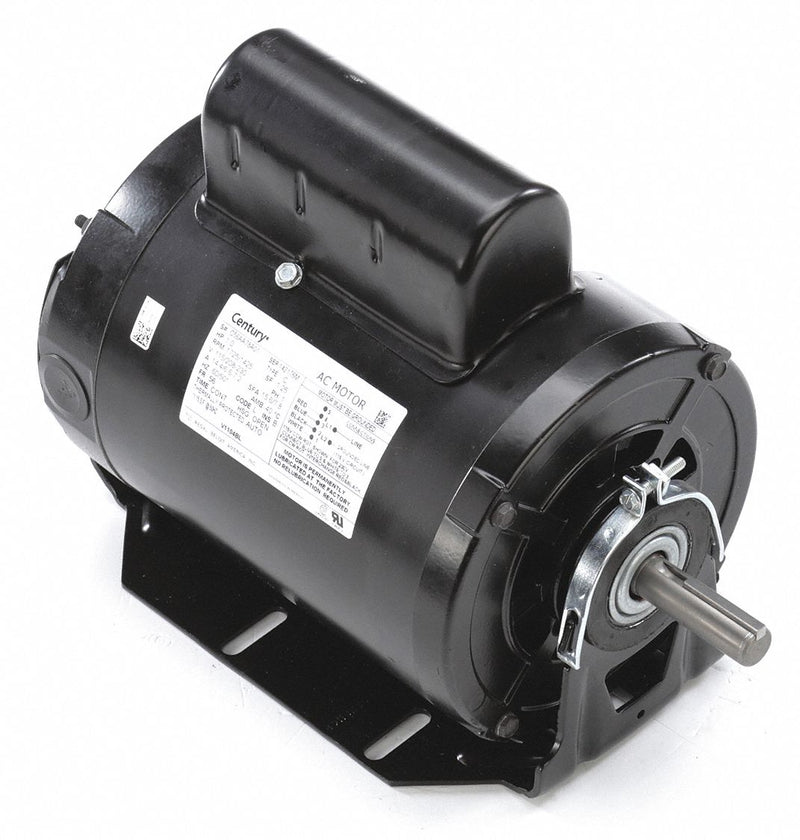

| Item | Evaporative Cooler Motor |
| Motor Application | HVAC/R |
| Motor Sub Application | Evaporator Cooler |
| Motor Design | Capacitor-Start |
| Motor Enclosure Design | Open |
| HP | 1 |
| No. of Speeds | 1 |
| Nameplate RPM | 1725 |
| Frame | 56 |
| Voltage | 115/208-230 |
| Hz | 60/50 |
| Phase | 1 |
| Full Load Amps | 14.4/6.6-7.2 |
| Motor Mounting Type | Cradle Base |
| Motor Thermal Protection | Auto |
| Ins. Class | B |
| Motor Service Factor | 1.25 |
| Motor Bearings | Ball |
| Ambient Temperature | 40 Degrees C |
| Max. Ambient Temp. | 40 Degrees C |
| Motor Shaft Rotation | CW/CCW |
| Length Less Shaft | 9 7/8 in |
| Overall Length | 11 3/4 in |
| Shaft Dia. | 5/8 in |
| Shaft Length | 1 7/8 in |
| Ring Dia. | 2 1/2 in |
| Resilient Ring Dia. | 2 1/2 in |
| Ring to Ring Center | 7 1/2 in |
| Standards | CSA, UL |
| RPM Range | 1701-1800 |
| Voltage Compatibility | 115, 115/208-230, 115/230, 120, 120/240, 208, 208-230, 208-240, 230, 240 |
