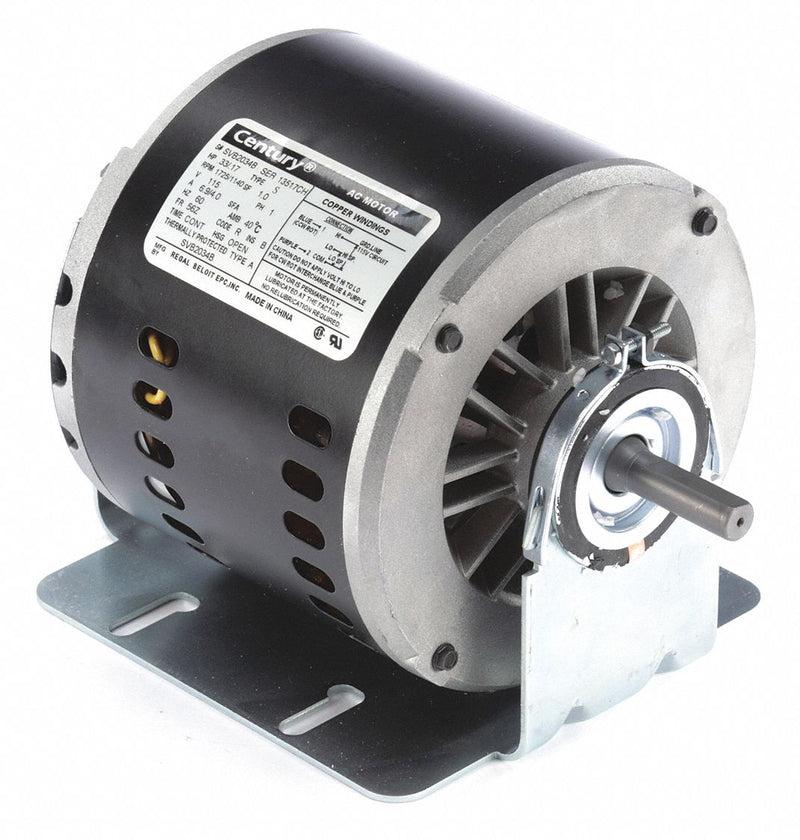

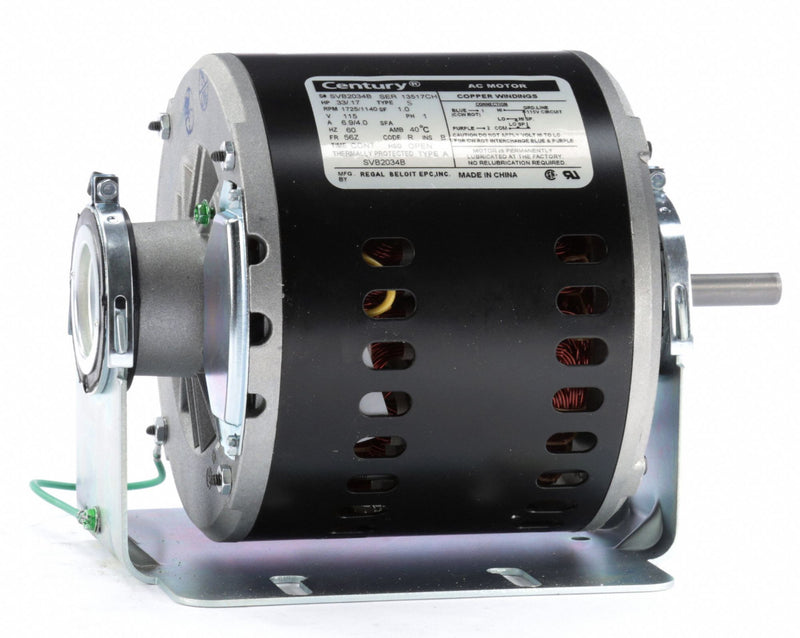

Century Evaporative Cooler Motor, Split-Phase, Open Dripproof, 1/6, 1/3 HP, Nameplate RPM 1725/1140 - SVB2034BV1

CenturySKU: C1550538
MPN : SVB2034BV1
Weight : 19.33 lb
filler

Price:
$287.06 $350.07

Availability : Usually Ships in 3-5 Business Days

Designed for evaporative coolers, pumps, and other devices in high-moisture environments. Moisture-resistant features include: plated hardware and switch parts, fungus treatment, and double-dip varnish.

ItemEvaporative Cooler Motor
Motor ApplicationHVAC/R
Motor Sub ApplicationEvaporator Cooler
Motor DesignSplit-Phase
Motor Enclosure DesignOpen Dripproof
HP1/6, 1/3
No. of Speeds2
Nameplate RPM1725/1140
Frame56Z
Voltage115
Hz60
Phase1
Full Load Amps6.9/3.4
Motor Mounting TypeCradle Base
Motor Thermal ProtectionAuto
Ins. ClassB
Motor Service Factor1
Motor BearingsBall
Ambient Temperature40 Degrees C
Max. Ambient Temp.40 Degrees C
Motor Shaft RotationCW/CCW
Length Less Shaft7 15/16 in
Overall Length9 7/16 in
Shaft Dia.1/2 in
Shaft Length1 1/2 in
Ring Dia.2 1/2 in
Resilient Ring Dia.2 1/2 in
Ring to Ring Center7 7/16 in
StandardsCSA, UL
RPM Range1701-1800
Voltage Compatibility115, 115/208-230, 115/230, 120, 120/240
