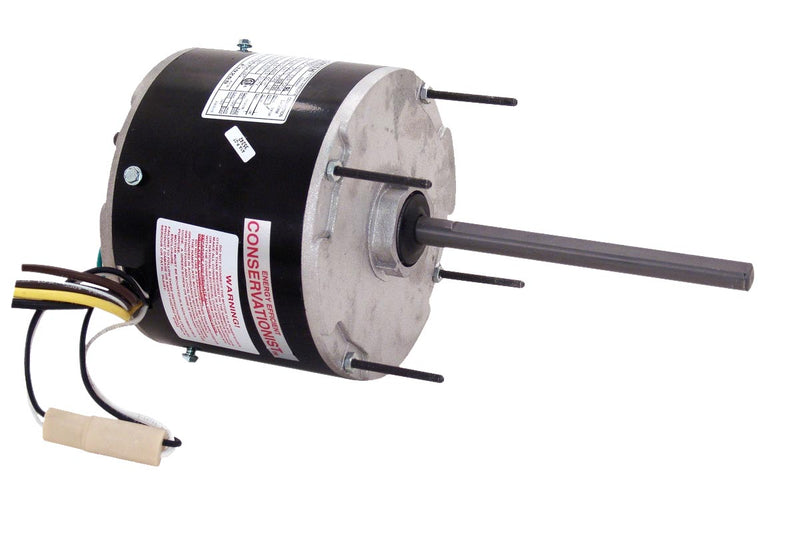

Century AO Smith F1056S Condenser Motor, 1/2 HP, PSC, 1075 RPM, 208-230V
Century AO Smith F1056S Condenser Motor, 1/2 HP, PSC, 1075 RPM, 208-230V

Century AO Smith F1056S Condenser Motor, 1/2 HP, PSC, 1075 RPM, 208-230V

CenturySKU: c2090828
MPN : F1056S
Weight : 15.0 lb

filler
Price:
$227.99 $278.03

Availability : Usually Ships in 3-5 Business Days
  • Features: Reversing plug, Extended thru-bolts, Hex mounting hubs on both ends, 60 degree C ambient, Capacitor not included

Item: Condenser Fan Motor, Motor Type: PSC, HP: 1/2, Nameplate RPM: 1075, Voltage: 208-230, Enclosure: Drip Proof, Rotation: CW/CCW, Hz: 60, Phase: 1, Speeds: 1, Bearings: Ball, Shaft Number: 1, Shaft Length: 6.44", Shaft Dia.: 0.5", Thermal Protection: Yes, Cooling: Air Over, Capacitor: 10M 370V.

ItemCondenser Fan Motor
Motor TypePSC
HP1/2
Nameplate RPM1075
Voltage208-230
EnclosureDrip Proof
RotationCW/CCW
Hz60
Phase1
Speeds1
BearingsBall
Shaft Number1
Shaft Length6.44"
Shaft Dia.0.5"
Thermal ProtectionYes
CoolingAir Over
Capacitor10M 370V
