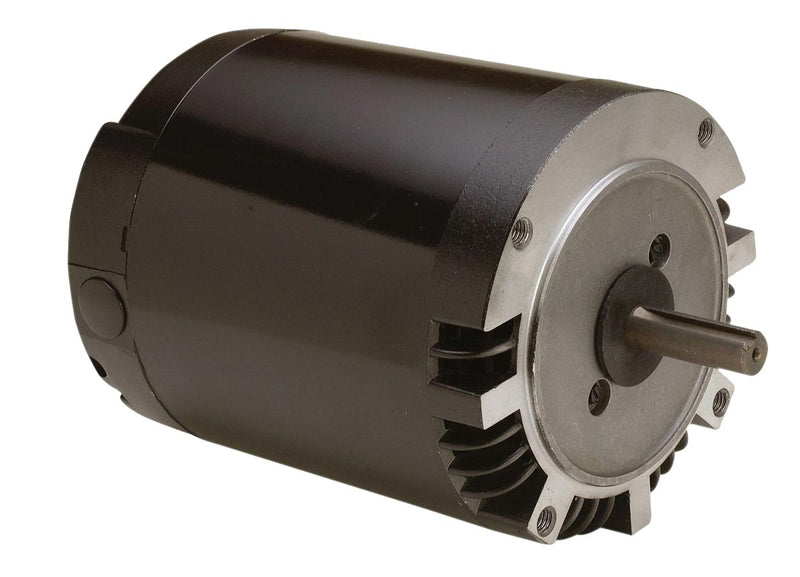

Century AO Smith F252 Split-Phase C Motor, 1/3, 1/11 HP, Split-Phase, 1725, 1140 RPM, 115V, 56CZ Frame
Availability : Usually Ships in 3-5 Business Days
- Features: 40 degree C ambient
Item: Direct Drive Blower Motor, Motor Type: Split-Phaselit Phase, HP: 1/3, 1/11, Nameplate RPM: 1725, 1140, Voltage: 115, Frame: 56CZ, Enclosure: Drip Proof, Rotation: CW/CCW, Hz: 60, Phase: 1, Speeds: 2, Service Factor: 1.35, Insulation Class: B, Bearings: Ball, Shaft Type: Key, Shaft Number: 1, Shaft Length: 2.25", Shaft Dia.: 0.625", "C" Dim: 11.3, Protection: none, Thermal Protection: No, Cooling: Ambient.
| Item | Direct Drive Blower Motor |
| Motor Type | Split-Phaselit Phase |
| HP | 1/3, 1/11 |
| Nameplate RPM | 1725, 1140 |
| Voltage | 115 |
| Frame | 56CZ |
| Enclosure | Drip Proof |
| Rotation | CW/CCW |
| Hz | 60 |
| Phase | 1 |
| Speeds | 2 |
| Service Factor | 1.35 |
| Insulation Class | B |
| Bearings | Ball |
| Shaft Type | Key |
| Shaft Number | 1 |
| Shaft Length | 2.25" |
| Shaft Dia. | 0.625" |
| "C" Dim | 11.3 |
| Protection | none |
| Thermal Protection | No |
| Cooling | Ambient |
