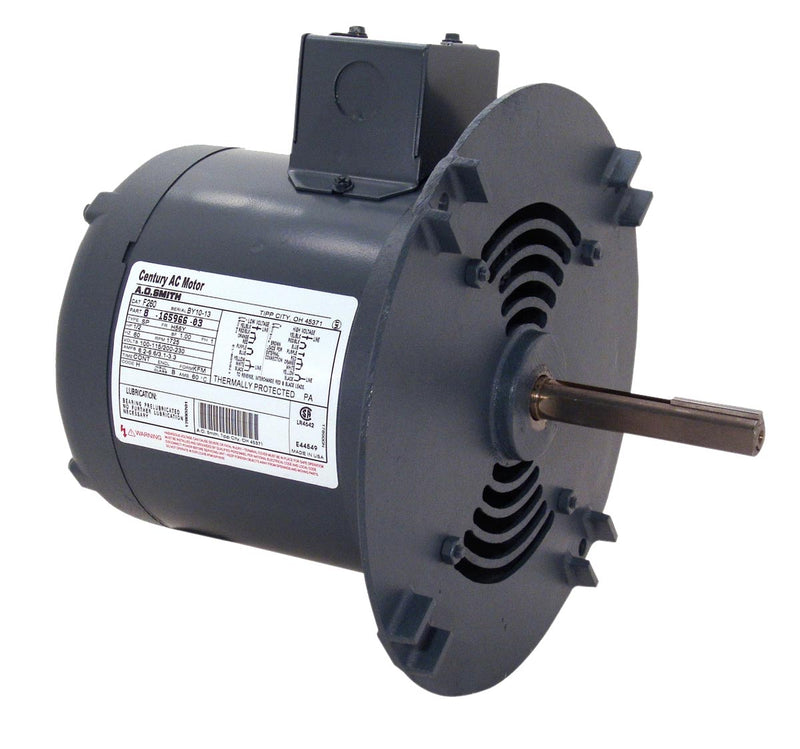

Century AO Smith F260 Oven Motor, 1/2 HP, Split-Phase, 1800 RPM, 100-115, 200-230V, 56Y Frame
Availability : Usually Ships in 3-5 Business Days
- Features: 60 degree C ambient, Special flange
Item: Repair Parts, Motor Type: Split-Phaselit Phase, HP: 1/2, Nameplate RPM: 1800, Voltage: 115/230, Frame: 56Y, Enclosure: Open, Rotation: CW/CCW, Hz: 60, Phase: 1, Speeds: 1, Service Factor: 1, Bearings: Ball, Base: Flange, Shaft Type: Key, Shaft Number: 1, Shaft Length: 1.875", Shaft Dia.: 0.625", "C" Dim: 10.8, Protection: Auto, Thermal Protection: Yes, Cooling: Ambient.
| Item | Repair Parts |
| Motor Type | Split-Phaselit Phase |
| HP | 1/2 |
| Nameplate RPM | 1800 |
| Voltage | 115/230 |
| Frame | 56Y |
| Enclosure | Open |
| Rotation | CW/CCW |
| Hz | 60 |
| Phase | 1 |
| Speeds | 1 |
| Service Factor | 1 |
| Bearings | Ball |
| Base | Flange |
| Shaft Type | Key |
| Shaft Number | 1 |
| Shaft Length | 1.875" |
| Shaft Dia. | 0.625" |
| "C" Dim | 10.8 |
| Protection | Auto |
| Thermal Protection | Yes |
| Cooling | Ambient |
