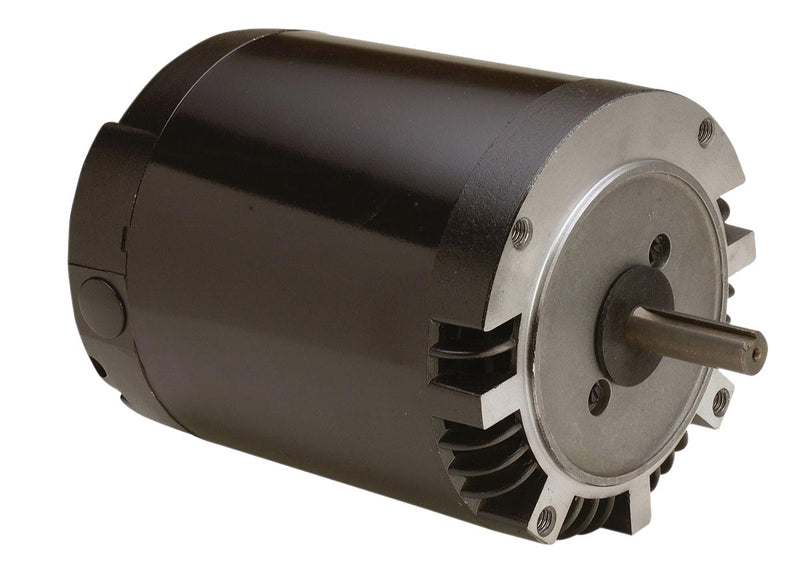

Century AO Smith F262 Split-Phase C Motor, 1/3, 1/11 HP, Split-Phase, 1725, 1140 RPM, 115V, 56CZ Frame

CenturySKU: c2090505
MPN : F262
Weight : 15.0 lb

filler

Price:
$483.24 $589.32

Availability : Usually Ships in 3-5 Business Days
  • Features: 40 degree C ambient

Item: Direct Drive Blower Motor, Motor Type: Split-Phaselit Phase, HP: 1/3, 1/11, Nameplate RPM: 1725, 1140, Voltage: 115, Frame: 56CZ, Enclosure: Drip Proof, Rotation: CW/CCW, Hz: 60, Phase: 1, Speeds: 2, Service Factor: 1.35, Insulation Class: B, Bearings: Ball, Shaft Type: Key, Shaft Number: 1, Shaft Length: 2.25", Shaft Dia.: 0.625", "C" Dim: 11.3, Protection: Auto, Thermal Protection: Yes, Cooling: Ambient.

ItemDirect Drive Blower Motor
Motor TypeSplit-Phaselit Phase
HP1/3, 1/11
Nameplate RPM1725, 1140
Voltage115
Frame56CZ
EnclosureDrip Proof
RotationCW/CCW
Hz60
Phase1
Speeds2
Service Factor1.35
Insulation ClassB
BearingsBall
Shaft TypeKey
Shaft Number1
Shaft Length2.25"
Shaft Dia.0.625"
"C" Dim11.3
ProtectionAuto
Thermal ProtectionYes
CoolingAmbient
